Recessed luminaires
Downlight Zoom 3000K 1x12W 60° Dim Triac
DL034-L12W3K-D-W
Copied
All characteristics
Color temperature , K
Power , W
Protection level
All characteristics
Available colors
Article
DL034-L12W3K-D-W
Short product code
71743
Brand
Technical
Collection
Downlight
Series
Zoom
Product type
Recessed luminaire
Fitting color
White
Fitting material
Aluminum
Color temperature
3000 К
IP protection
IP 65
Dimmable
Yes
Height
85 mm
Color rendering index
90 CRI
Scattering angle
60 °
Voltage
50Hz AC 220-240 V
Diameter
85 mm
Protection level
Class2
Warranty
5 years
Power
12 W
Volume
0.0018 m³
Light flux
910 Lm
The shape of the base
Round
Energy efficiency class
F
Fireproof
No
Packing length
125 mm
Net
0.36 kg
Gross
0.43 kg
Service life
30000 h
Mounting hole depth
90 mm
Mounting hole diameter
75 mm
Mounting hole shape
Round
Mounting type
Recessed
Control protocol
Triac
Number of LEDs
1

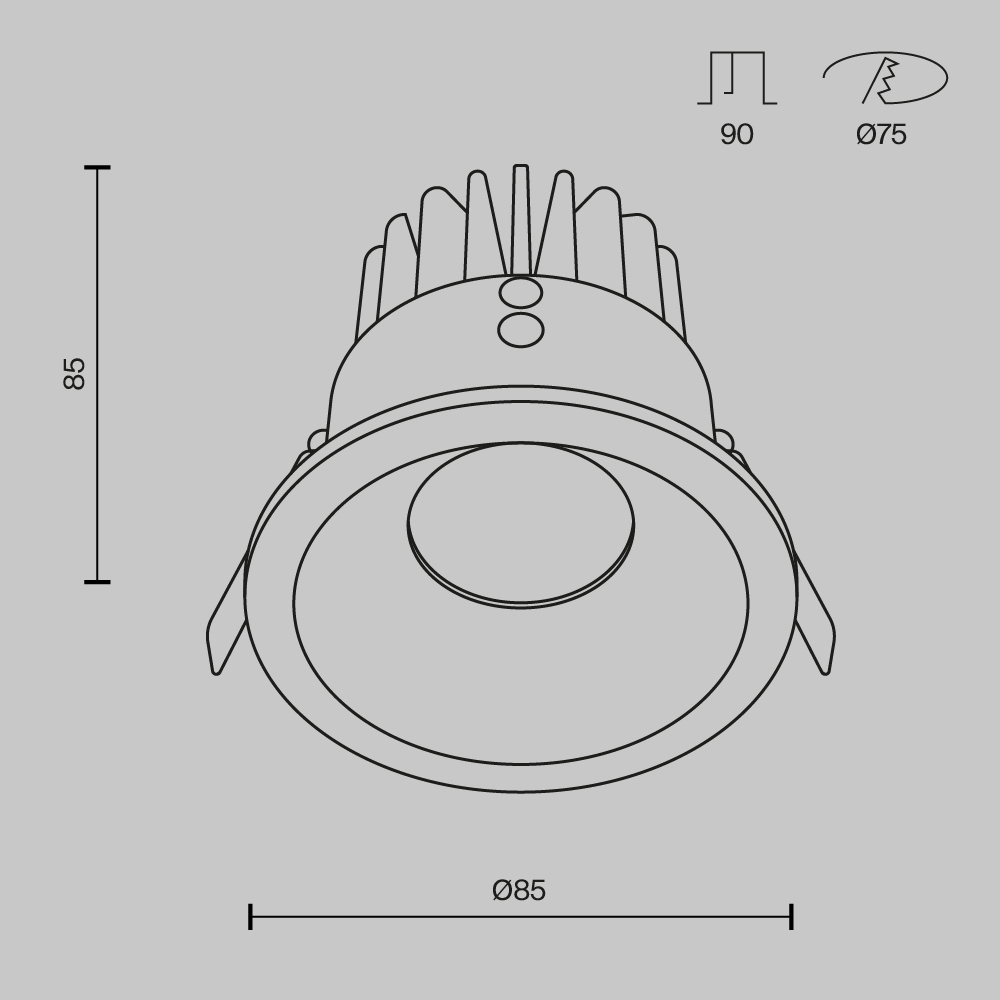

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Zoom
Built-in lamps. Aluminium frame. Integrated LED module (models DL031).
