Power , W
Base X Number of Lamps
Protection level
All characteristics
Available colors
Article
DL033-2-01W
Short product code
75939
Brand
Technical
Collection
Downlight
Series
Zoom
Product type
Recessed luminaire
Fitting color
White
Fitting material
Aluminum
Light source
GU10
Number of lamps
1 pcs

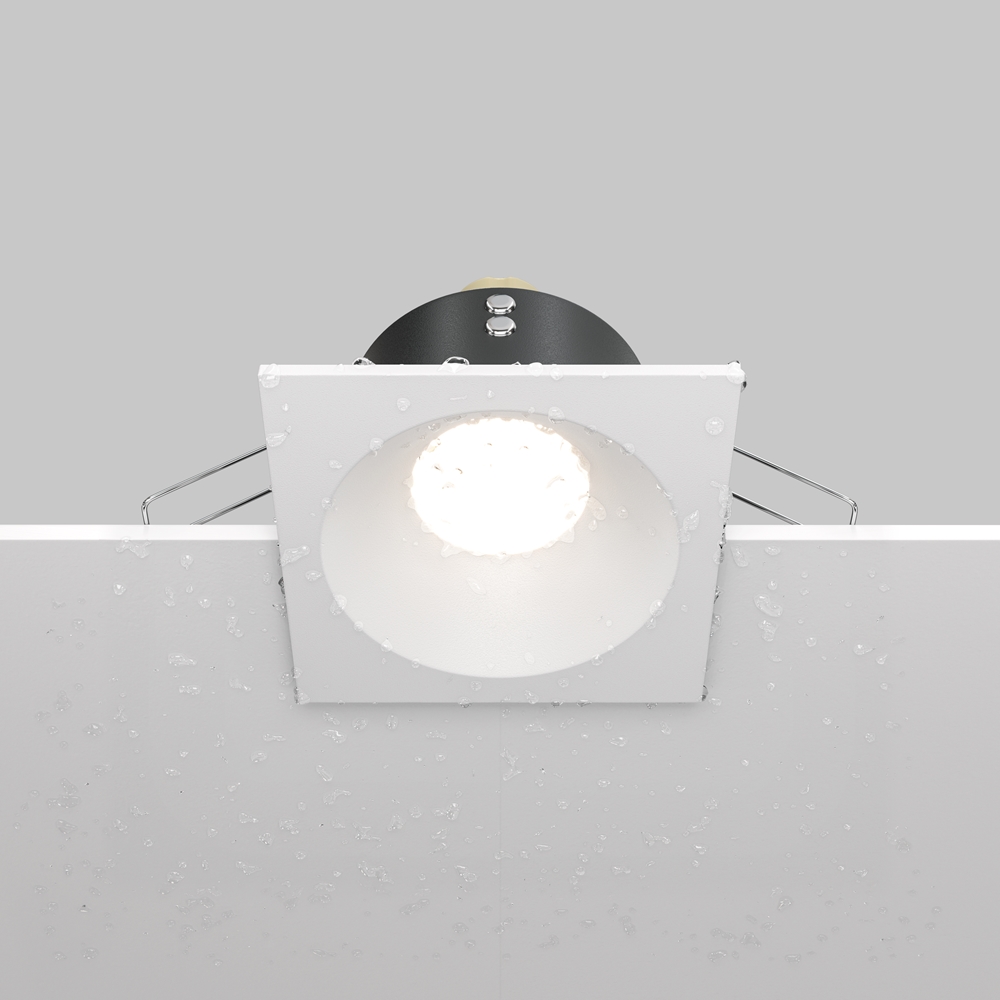

IP protection
IP 65
Dimmable
No
Height
45 mm
Width
85 mm
Length
85 mm
Voltage
50Hz AC 220-240 V
Protection level
Class2
Warranty
2 years
Power
10 W
Volume
0.0006 m³
The shape of the base
Round
Base diameter
75 mm
Fireproof
No
Packing length
105 mm
Net
0.18 kg
Gross
0.21 kg
Installation depth with lamp
100 mm
Mounting hole depth
100 mm
Mounting hole diameter
75 mm
Mounting hole shape
Round

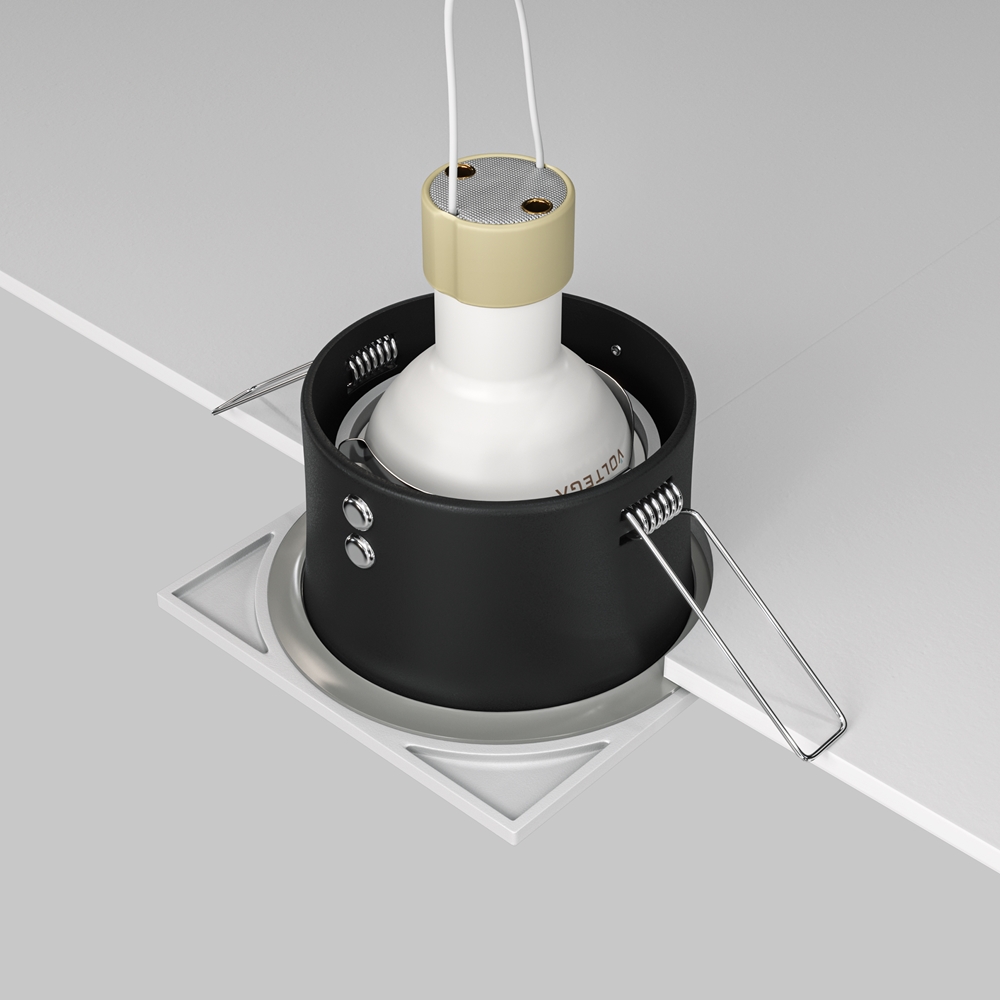

Mounting type
Recessed

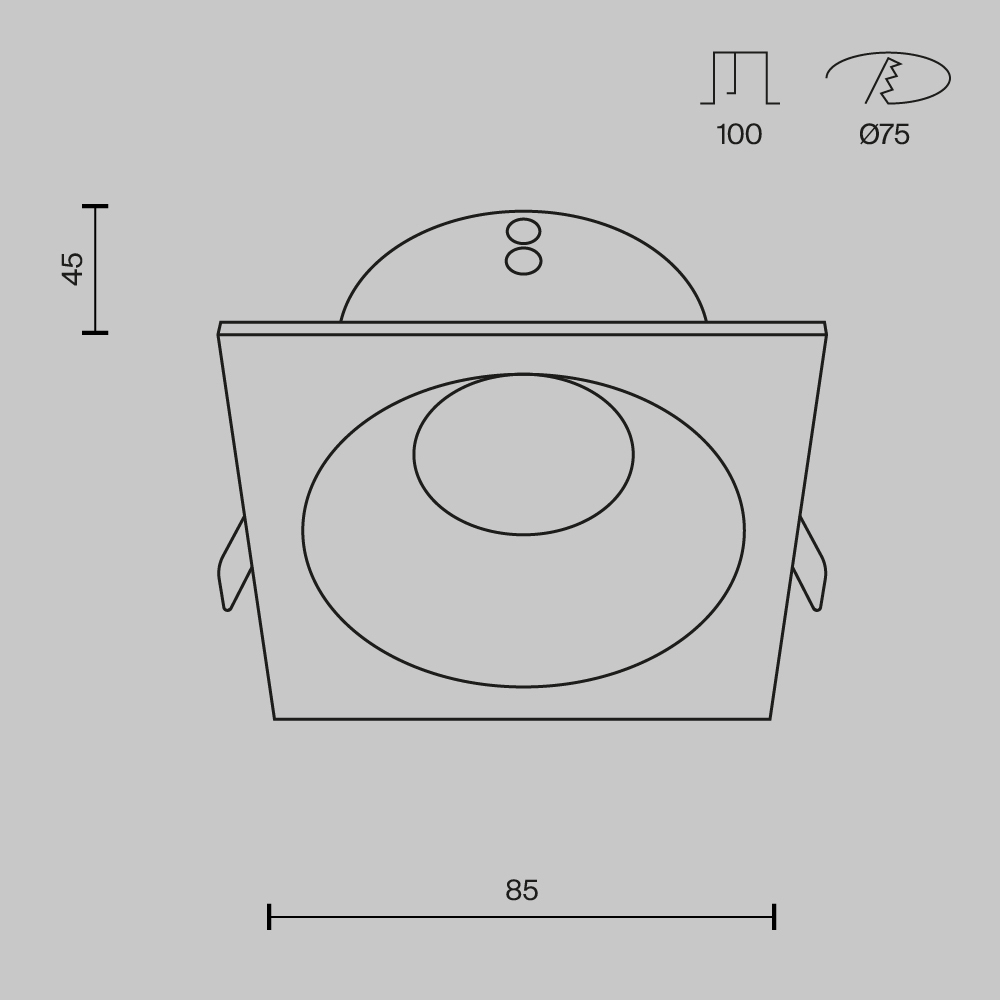

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Zoom
Built-in lamps. Aluminium frame. Integrated LED module (models DL031).
