Power , W
Base X Number of Lamps
Protection level
All characteristics
Available colors

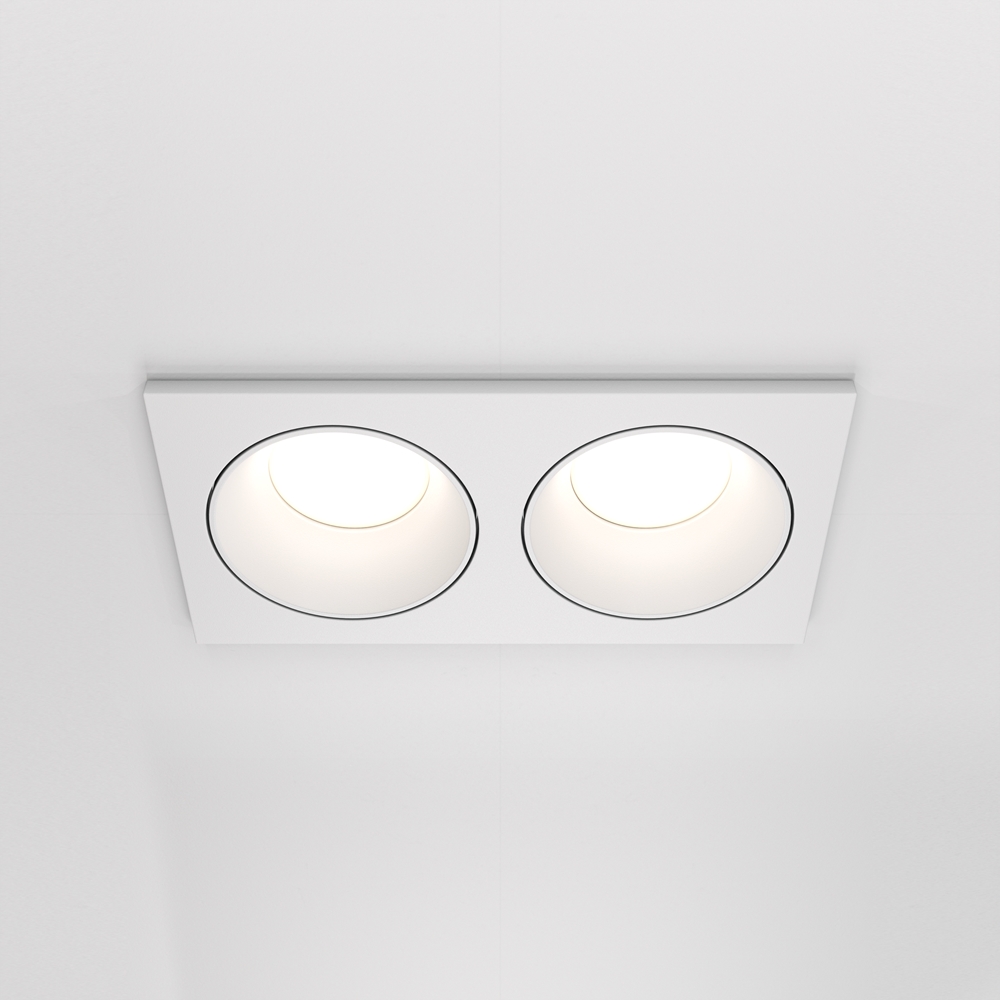

Article
DL033-2-02W
Short product code
71929
Brand
Technical
Collection
Downlight
Series
Zoom
Product type
Recessed luminaire
Fitting color
White
Fitting material
Aluminum
Light source
GU10
Number of lamps
2 pcs
IP protection
IP 65
Dimmable
No
Height
36 mm
Width
90 mm
Length
170 mm
Voltage
50Hz AC 220-240 V
Protection level
Class2
Warranty
2 years
Power
10 W
Volume
0.0011 m³
The shape of the base
Rectangular
Fireproof
No
Packing length
180 mm
Net
0.3 kg
Gross
0.34 kg
Installation depth with lamp
120 mm
Mounting hole depth
120 mm
Mounting hole length
160 mm
Mounting Hole Width
80 mm
Mounting hole shape
Rectangular
Mounting type
Recessed

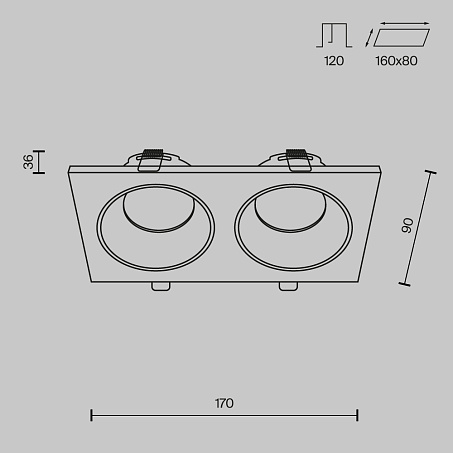

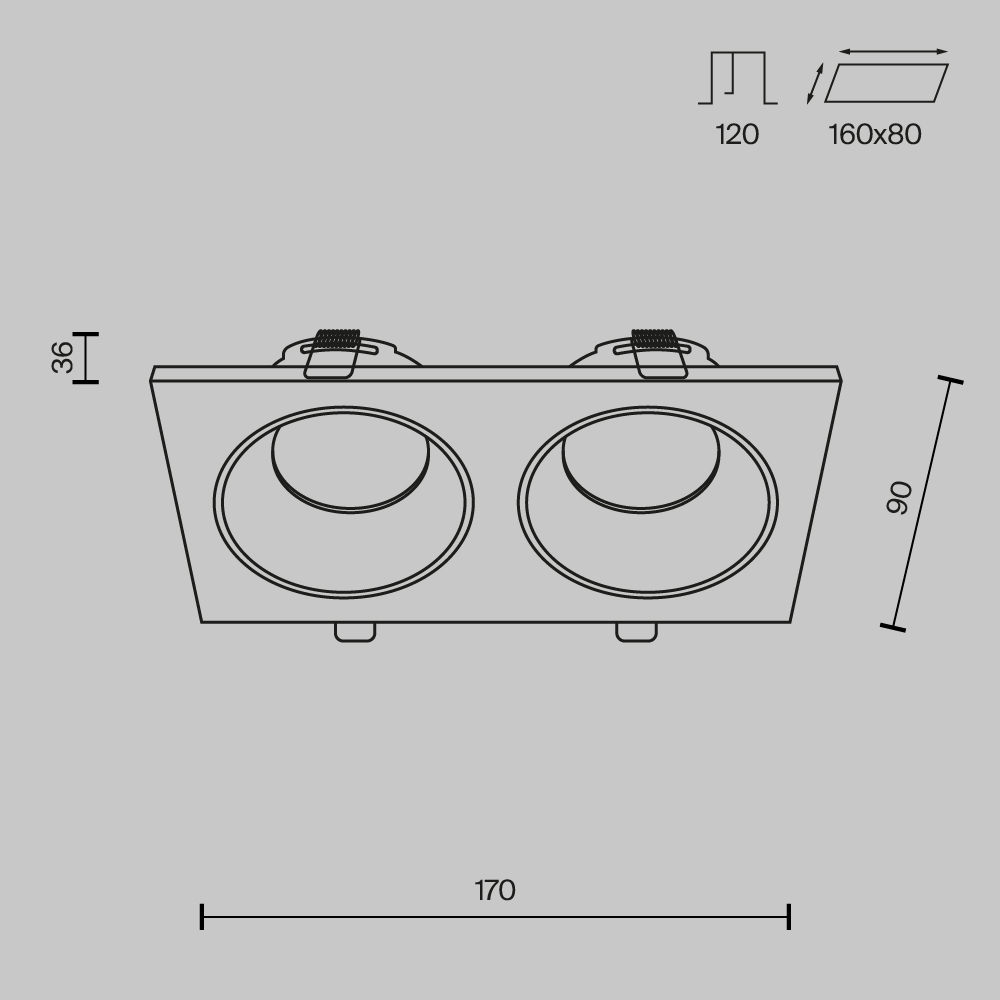

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Zoom
Built-in lamps. Aluminium frame. Integrated LED module (models DL031).
