Power , W
Base X Number of Lamps
Protection level
All characteristics
Available colors
Article
DL024-2-02B
Short product code
75910
Brand
Technical
Collection
Downlight
Series
Atom
Product type
Recessed luminaire
Fitting color
Black
Fitting material
Aluminum
Light source
GU10
Number of lamps
2 pcs
IP protection
IP 20
Dimmable
No
Height
25 mm
Width
92 mm
Length
175 mm
Voltage
50Hz AC 220-240 V
Protection level
Class2
Warranty
2 years
Power
10 W
Volume
0.0011 m³
The shape of the base
Rectangular
Base diameter
80 mm
Fireproof
No
Packing length
120 mm
Net
0.29 kg
Gross
0.33 kg
Installation depth with lamp
80 mm
Mounting hole depth
80 mm
Mounting hole length
80 mm
Mounting Hole Width
160 mm
Mounting hole shape
Rectangular
Mounting type
Recessed

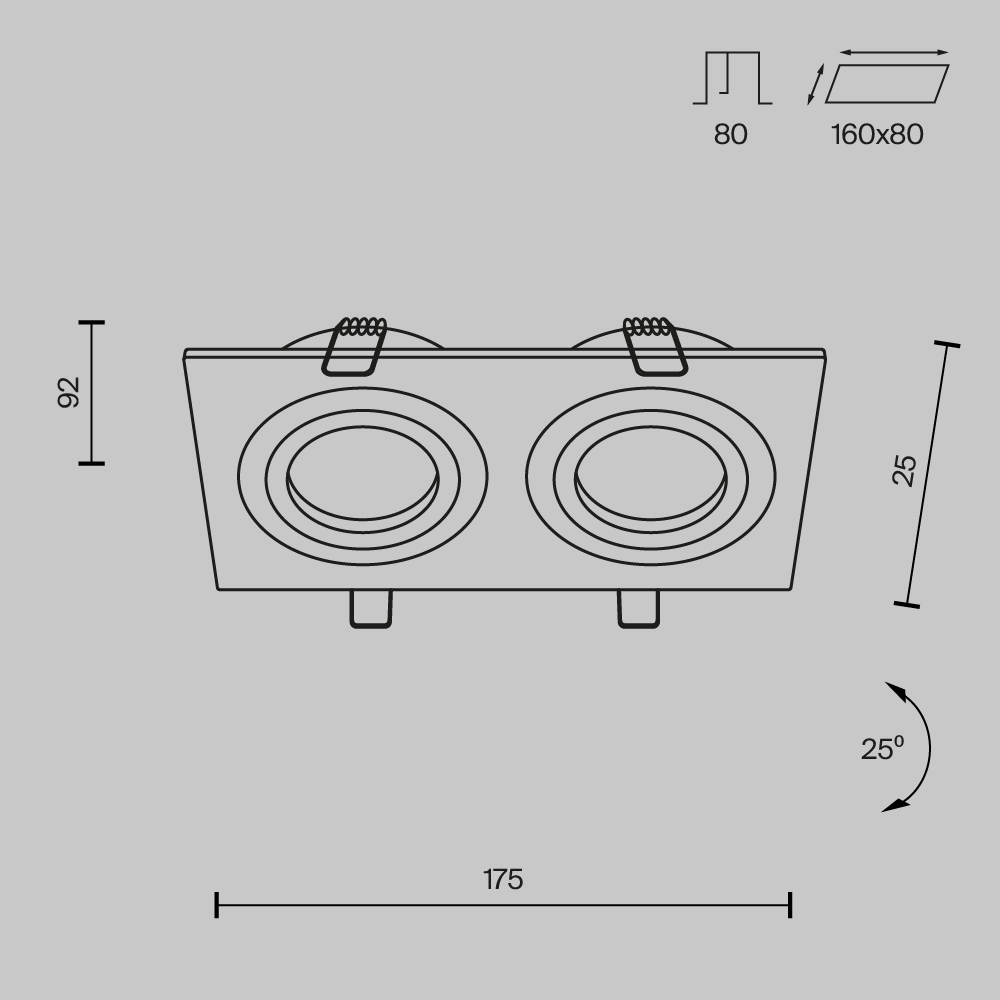

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Atom
Recessed downlight, adjustable 25°. Powder coated metal body.
