Power , W
Base X Number of Lamps
Protection level
All characteristics
Available colors
Article
DL023-2-01B
Short product code
75904
Brand
Technical
Collection
Downlight
Series
Atom
Product type
Recessed luminaire
Fitting color
Black
Fitting material
Aluminum
Light source
GU10
Number of lamps
1 pcs
IP protection
IP 20
Dimmable
No
Height
25 mm
Voltage
50Hz AC 220-240 V
Diameter
92 mm
Protection level
Class2
Warranty
2 years
Power
10 W
Volume
0.0007 m³
The shape of the base
Round
Base diameter
80 mm
Fireproof
No
Packing length
105 mm
Net
0.12 kg
Gross
0.17 kg
Installation depth with lamp
80 mm
Mounting hole depth
80 mm
Mounting hole diameter
80 mm
Mounting hole shape
Round
Mounting type
Recessed

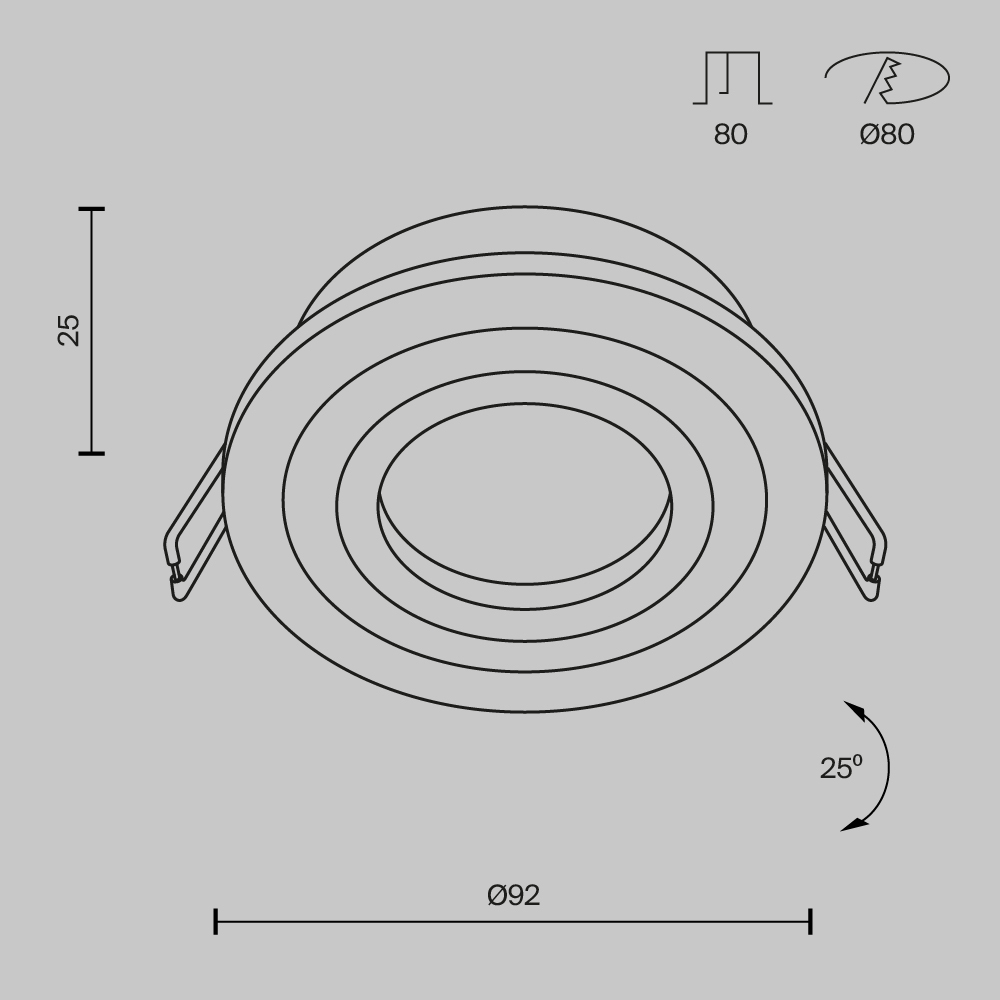

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Atom
Recessed downlight, adjustable 25°. Powder coated metal body.
