Color temperature , K
Power , W
Protection level
All characteristics
Article
C024CL-L12B3K
Short product code
70475
Brand
Technical
Collection
Ceiling
Series
Onda
Product type
Ceiling luminaire
Fitting color
Black
Fitting material
Aluminum
Color temperature
3000 К
IP protection
IP 20
Dimmable
No
Height
80 mm
Color rendering index
80 CRI
Scattering angle
120 °
Voltage
50Hz AC 220-240 V
Diameter
85 mm
Protection level
Class1
Warranty
5 years
Power
12 W
Volume
0.0006 m³
Light flux
650 Lm
Energy efficiency class
G
Fireproof
No
Packing length
95 mm
Net
0.37 kg
Gross
0.4 kg
Service life
30000 h
Mounting type
Surface-mounted
Number of LEDs
24

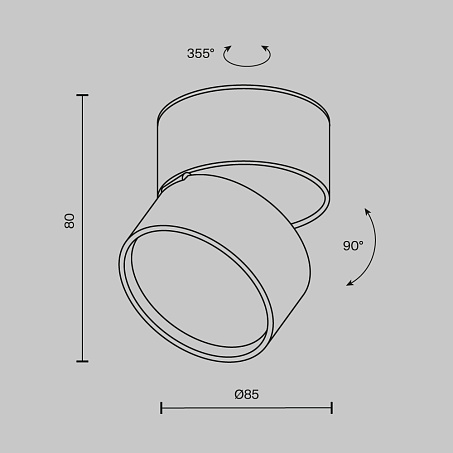

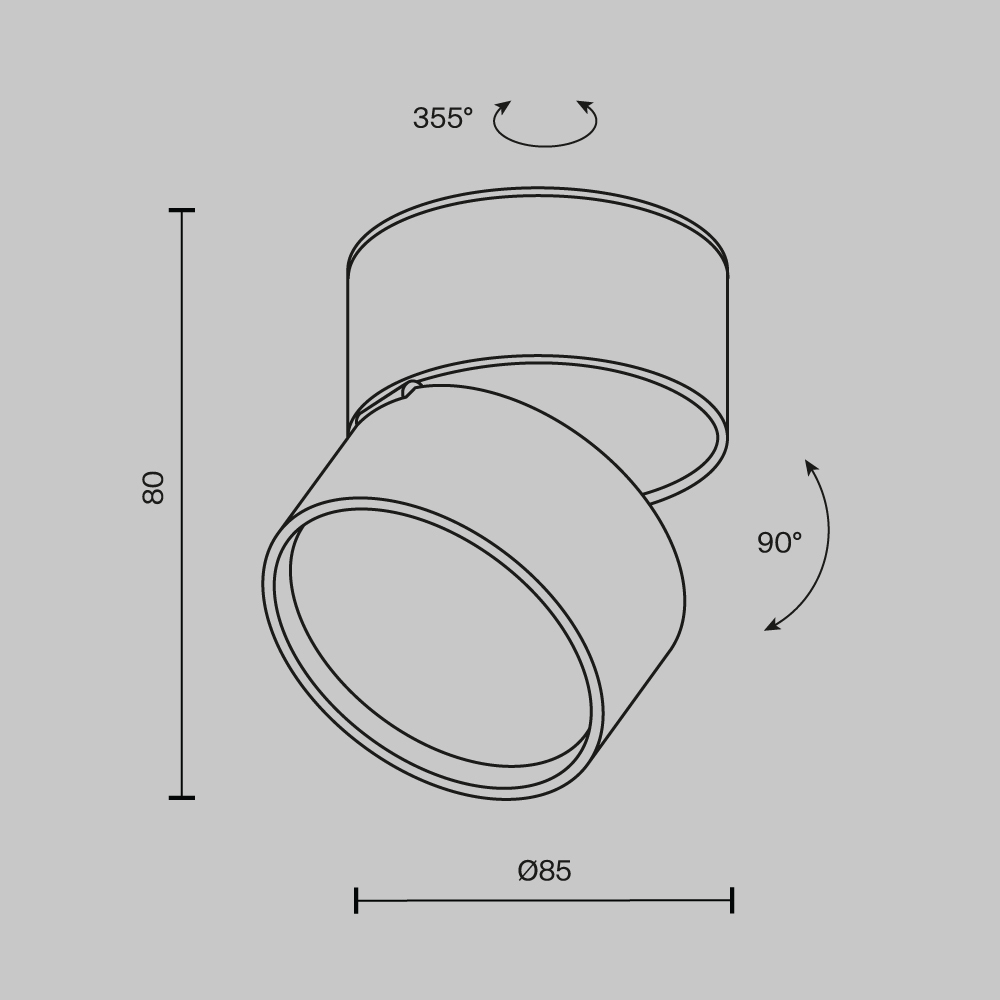

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Onda
The Onda C024CL subseries offers soft, even ceiling lighting with a clean, understated profile. These compact surface-mounted fixtures feature a slim, round aluminium body in black or white, and come in two diameters—85 mm (12W) and 120 mm (18W). Designed with a wide 120° beam angle, they cast a gentle, diffuse glow ideal for ambient lighting in hallways, kitchens, or workspaces. A 3000K or 4000K colour temperature adds warmth or clarity, while a CRI of 80 ensures faithful colour tones. With up to 36 LEDs per unit, Onda delivers smooth, balanced light in a design that blends effortlessly into modern interiors.
