Color temperature , K
Power , W
Protection level
All characteristics
Available colors
Article
DL303-L12B
Short product code
74283
Brand
Technical
Collection
Downlight
Series
Phanton
Product type
Recessed luminaire
Fitting color
Black
Fitting material
Aluminum
Color temperature
3000 К
IP protection
IP 20
Dimmable
No
Height
32 mm
Color rendering index
80 CRI
Scattering angle
120 °
Voltage
50Hz AC 220-240 V
Diameter
95 mm
Protection level
Class2
Warranty
5 years
Power
12 W
Volume
0.0009 m³
Light flux
750 Lm
The shape of the base
Round
Base diameter
75 mm
Mounting hole depth
30 mm
Energy efficiency class
G
Fireproof
No
Packing length
140 mm
Net
0.19 kg
Gross
0.23 kg
Service life
50000 h
Mounting hole depth
30 mm
Mounting hole diameter
75 mm
Mounting hole shape
Round
Mounting type
Recessed
Drawing
All dimensions in mm
Please choose no more than 3 images
About series Phanton

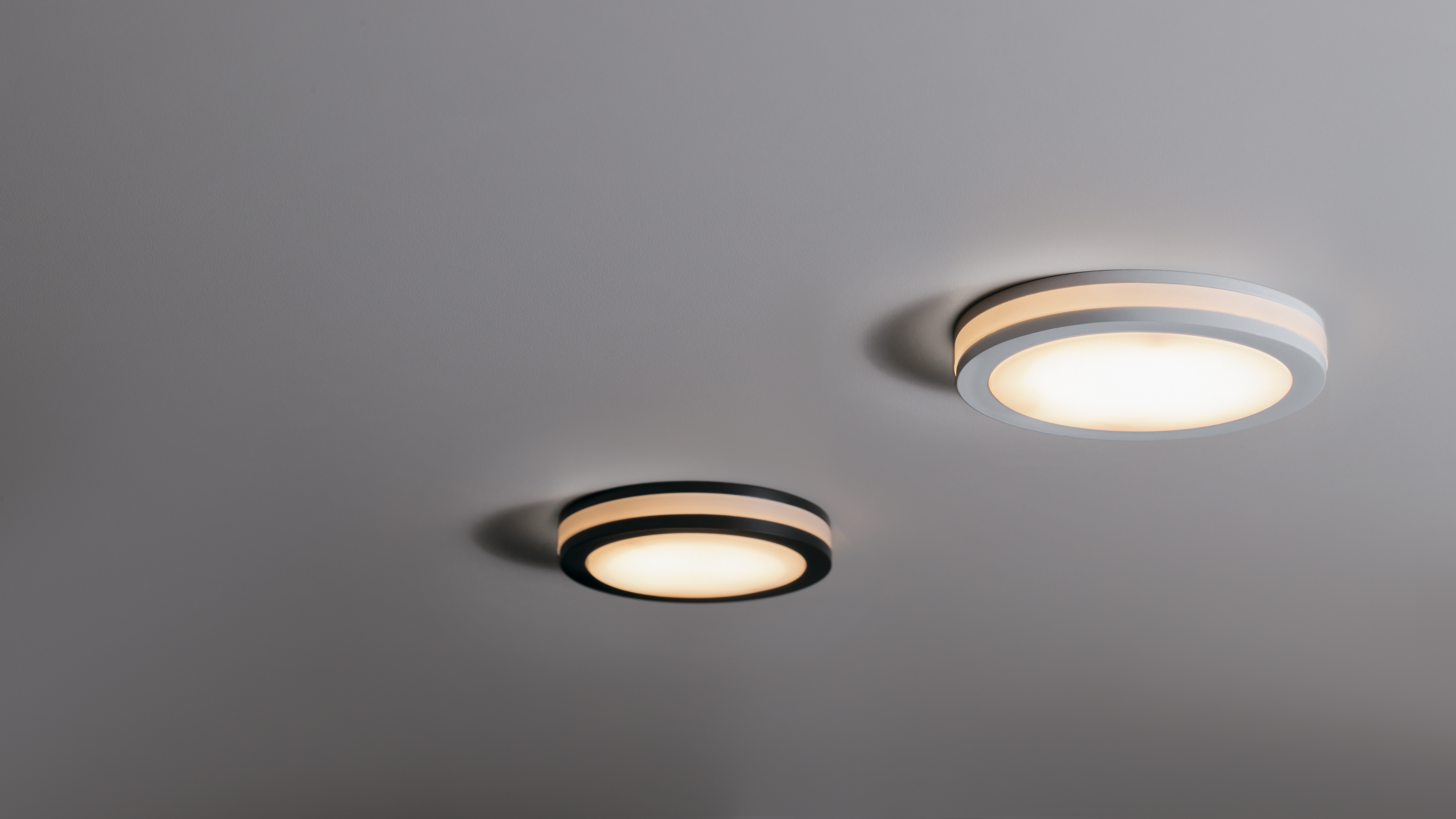

Metal body. Wide scattering angle is 120°. LED light source.
