Color temperature , K
Power , W
Protection level
All characteristics
Available colors
Article
DL095-01-10W3K-W
Short product code
78023
Brand
Technical
Collection
Downlight
Series
Hidden
Product type
Recessed luminaire
Fitting color
White
Fitting material
Aluminum and plastic
Color temperature
3000 К
IP protection
IP 20
Dimmable
No
Height
97 mm
Color rendering index
90 CRI
Scattering angle
24 °
Voltage
50Hz AC 220-240 V
Diameter
90 mm
Protection level
Class2
Warranty
2 years
Power
10 W
Volume
0.0012 m³
Light flux
780 Lm
The shape of the base
Round
Energy efficiency class
E
Fireproof
No
Packing length
110 mm
Net
0.23 kg
Gross
0.3 kg
Service life
20000 h

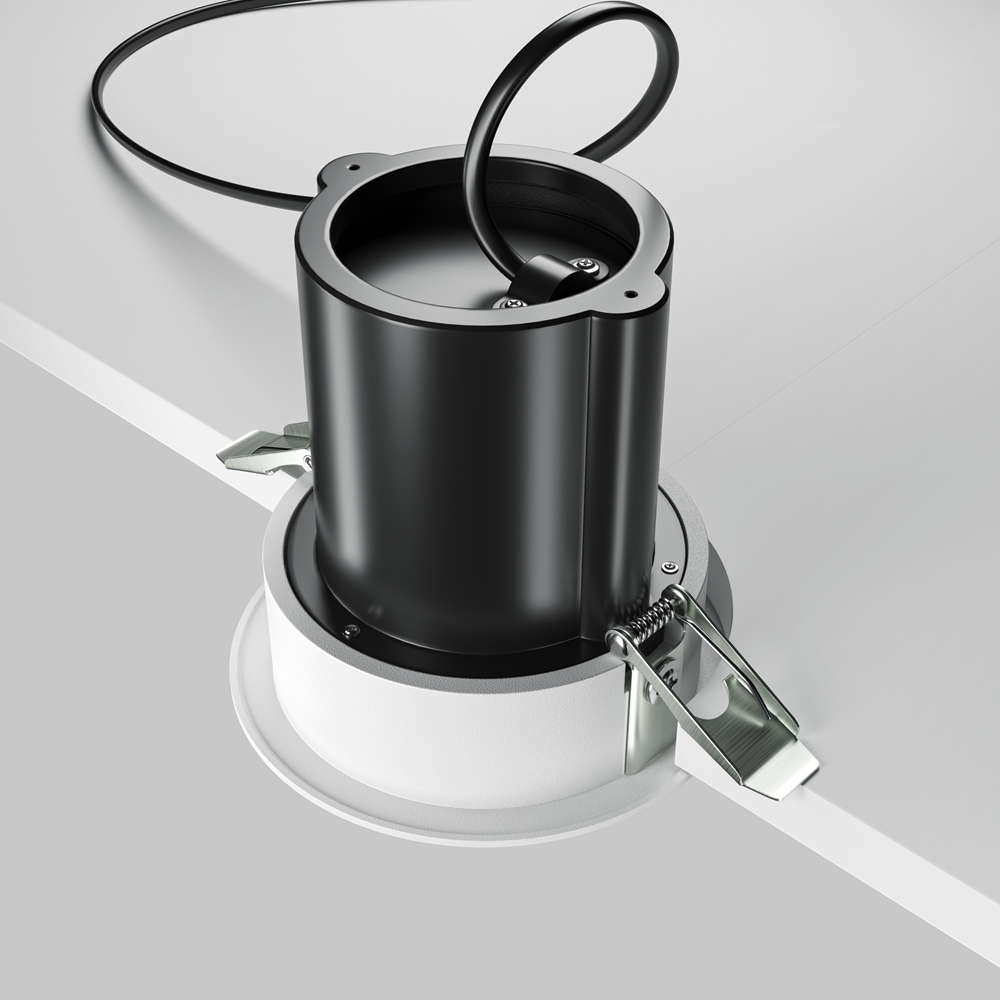

Mounting hole depth
100 mm
Mounting hole diameter
80 mm
Mounting hole shape
Round
Mounting type
Recessed
Number of LEDs
1

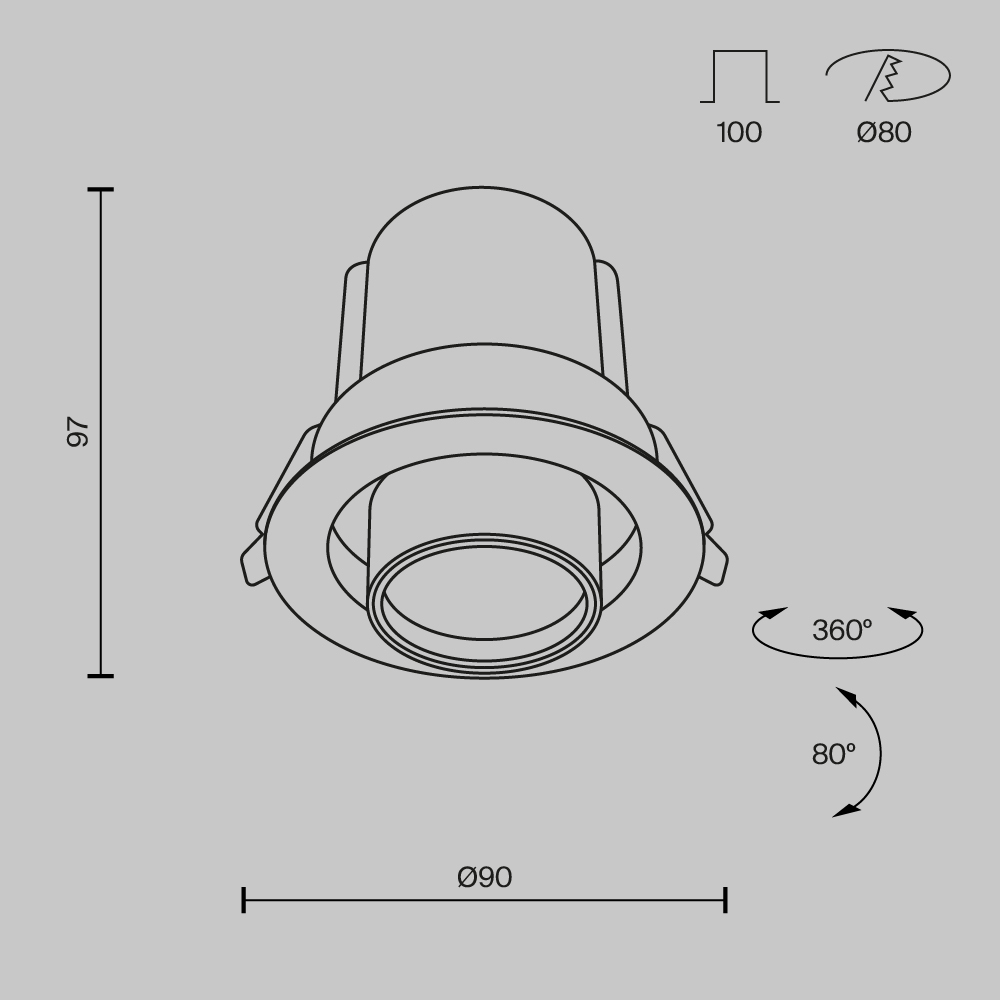

Drawing
All dimensions in mm
