Recessed luminaires
Downlight Okno 3000-4000-6000K 1x12W 100°
DL056-12W3-4-6K-W
Copied
All characteristics
Power , W
Protection level
All characteristics
Article
DL056-12W3-4-6K-W
Analogue
DL056-12W3K-W; DL056-12W4K-W; DL054-12W3K-W; DL054-12W4K-W
Short product code
73097
Brand
Technical
Collection
Downlight
Series
Okno
Product type
Recessed luminaire
Fitting color
White
Fitting material
Aluminum and plastic
IP protection
IP 44
Dimmable
No
Height
55 mm
Width
110 mm
Color rendering index
90 CRI
Length
110 mm
Scattering angle
100 °
Voltage
AC 165-265 V
Protection level
Class2
Warranty
5 years
Power
12 W
Volume
0.0011 m³
The shape of the base
Rectangular
Energy efficiency class
G
Fireproof
No
Packing length
130 mm
Net
0.29 kg
Gross
0.35 kg
Service life
30000 h
Mounting hole depth
71 mm
Mounting hole length
104 mm
Mounting Hole Width
104 mm
Mounting hole shape
Rectangular
Mounting type
Recessed
Number of LEDs
72

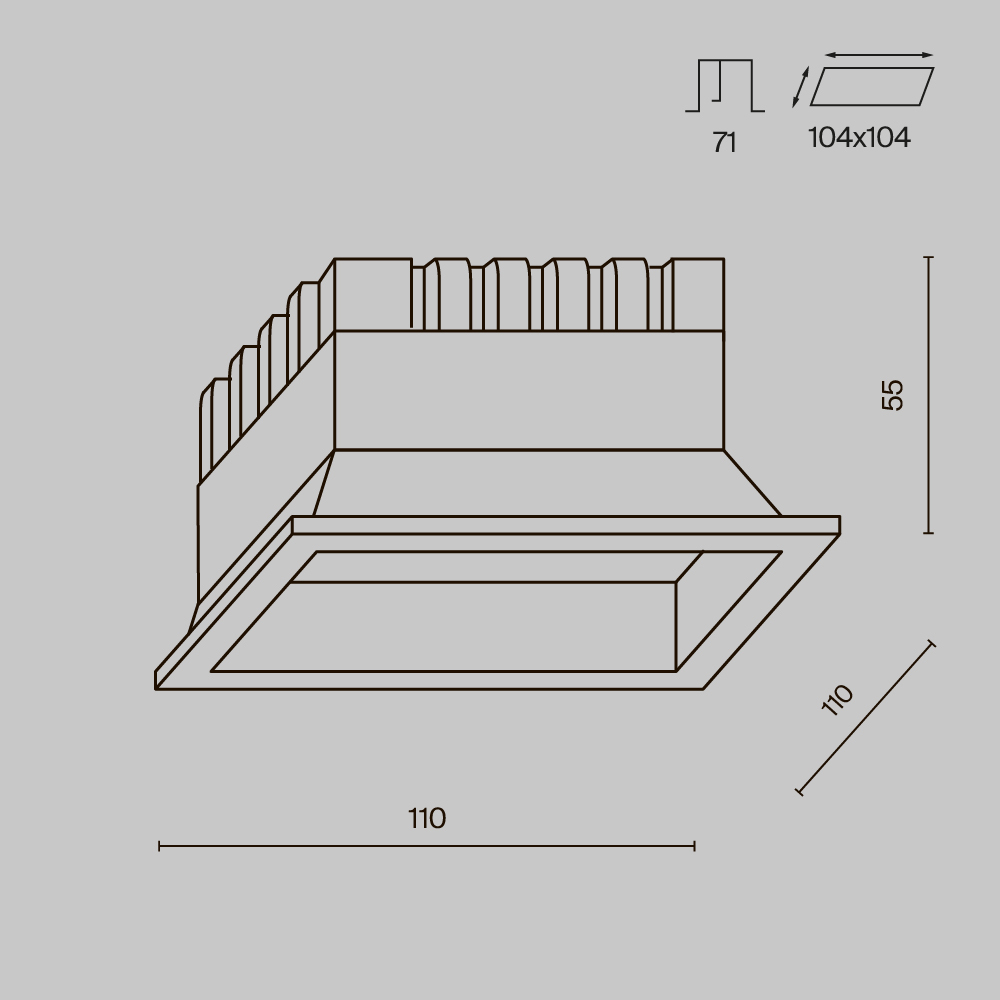

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Okno
Metal body. Wide scattering angle is 100°. Protection level IP44. LED light source.
