Power , W
Base X Number of Lamps
Protection level
All characteristics
Available colors
Article
DL050-01B
Short product code
70486
Brand
Technical
Collection
Downlight
Series
Reif
Product type
Recessed luminaire
Fitting color
Black
Fitting material
Aluminum
Light source
GU10
Number of lamps
1 pcs
IP protection
IP 20
Dimmable
No
Height
55 mm
Voltage
50Hz AC 220-240 V
Diameter
68 mm
Protection level
Class2
Warranty
2 years
Power
10 W
Volume
0.0006 m³
The shape of the base
Round
Base diameter
60 mm
Fireproof
No
Packing length
90 mm
Net
0.08 kg
Gross
0.12 kg
Service life
50000 h
Installation depth with lamp
80 mm
Mounting hole depth
80 mm
Mounting hole diameter
65 mm
Mounting hole shape
Round
Mounting type
Recessed

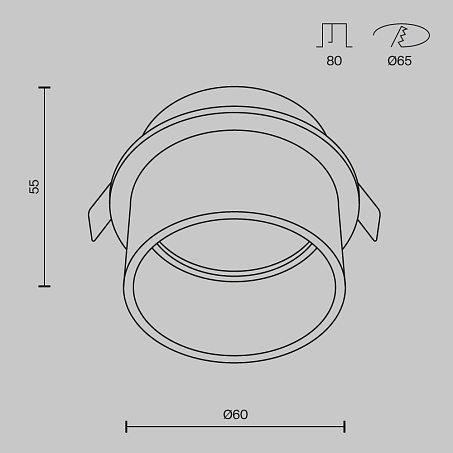

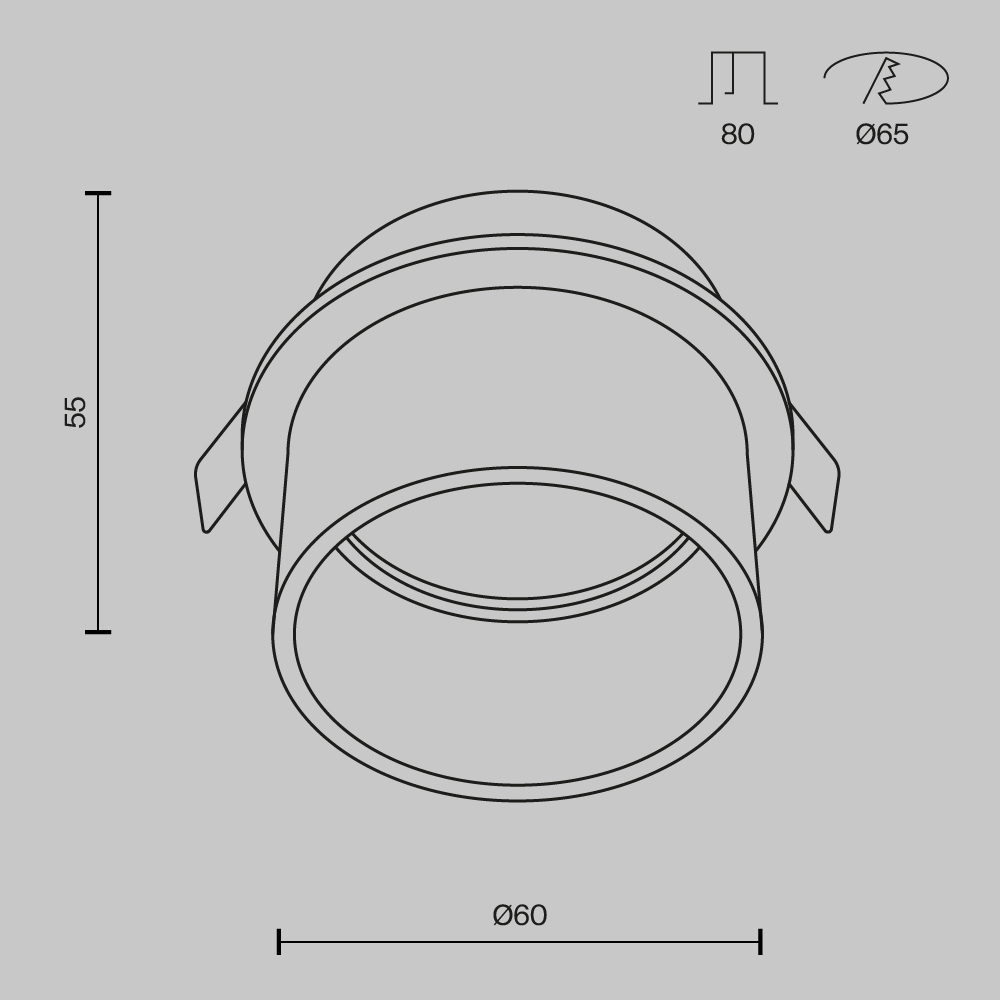

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Reif
Metal body. Two types of models: with and without a fully integrated body. The light source is a lamp with a GU10 base (not included).
