Recessed luminaires

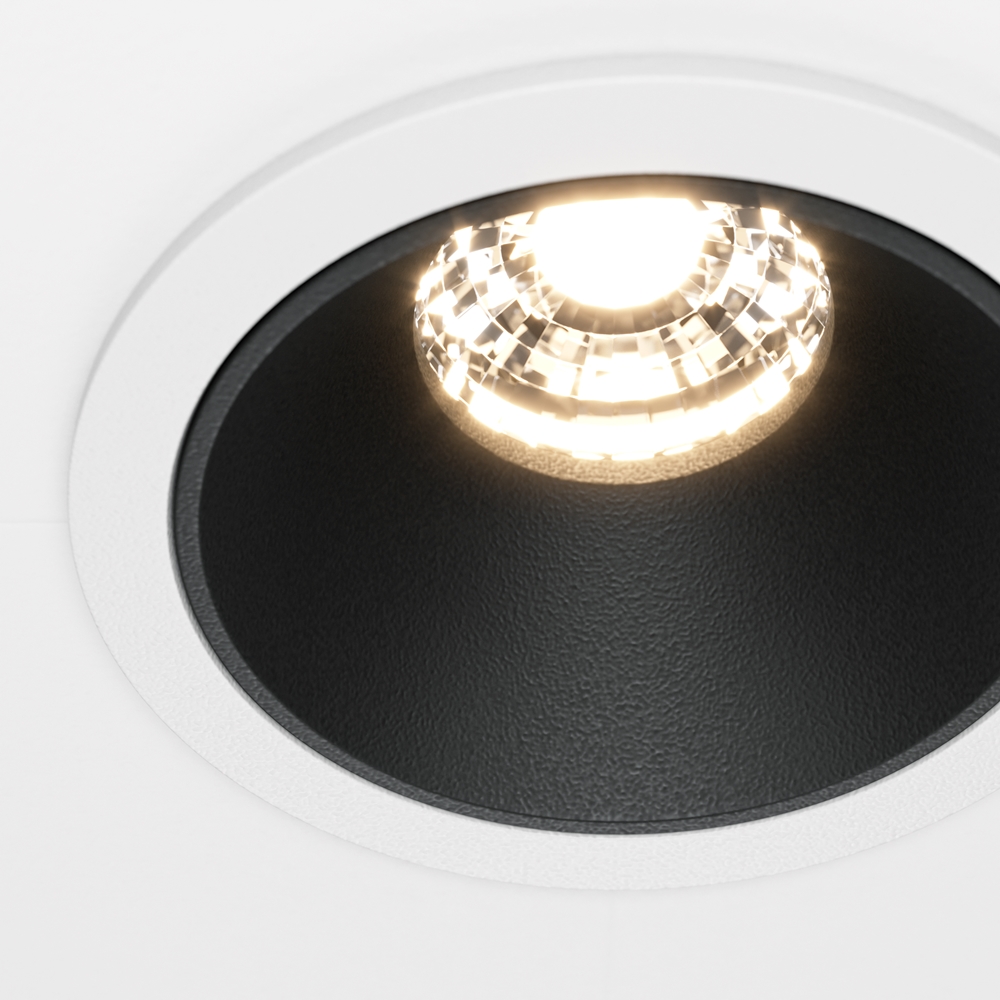

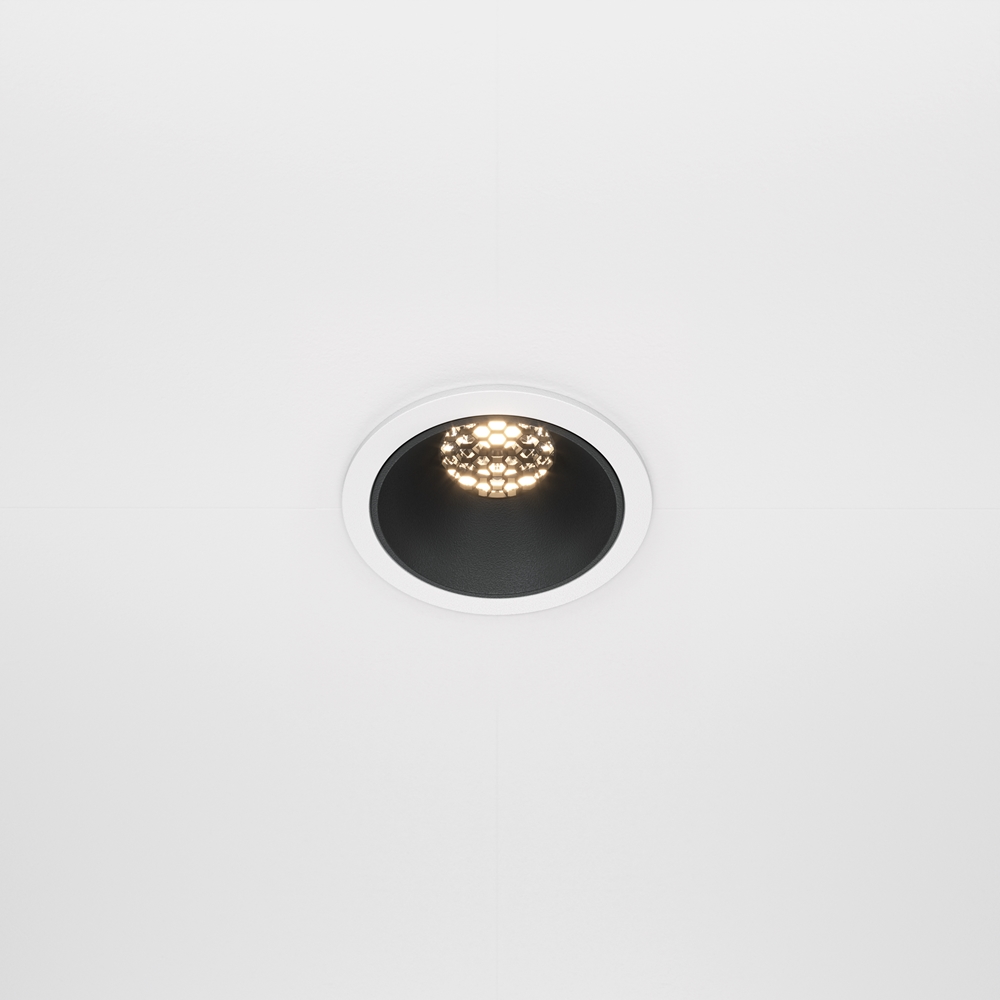

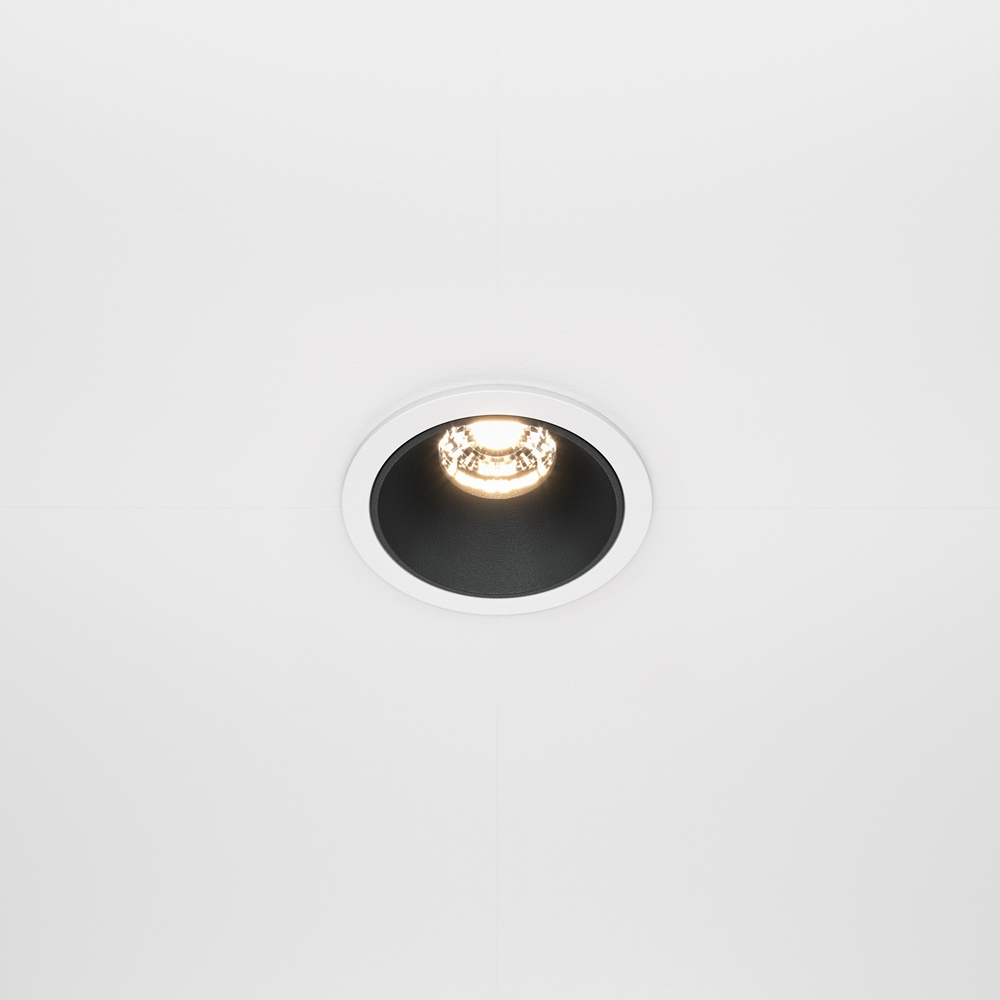

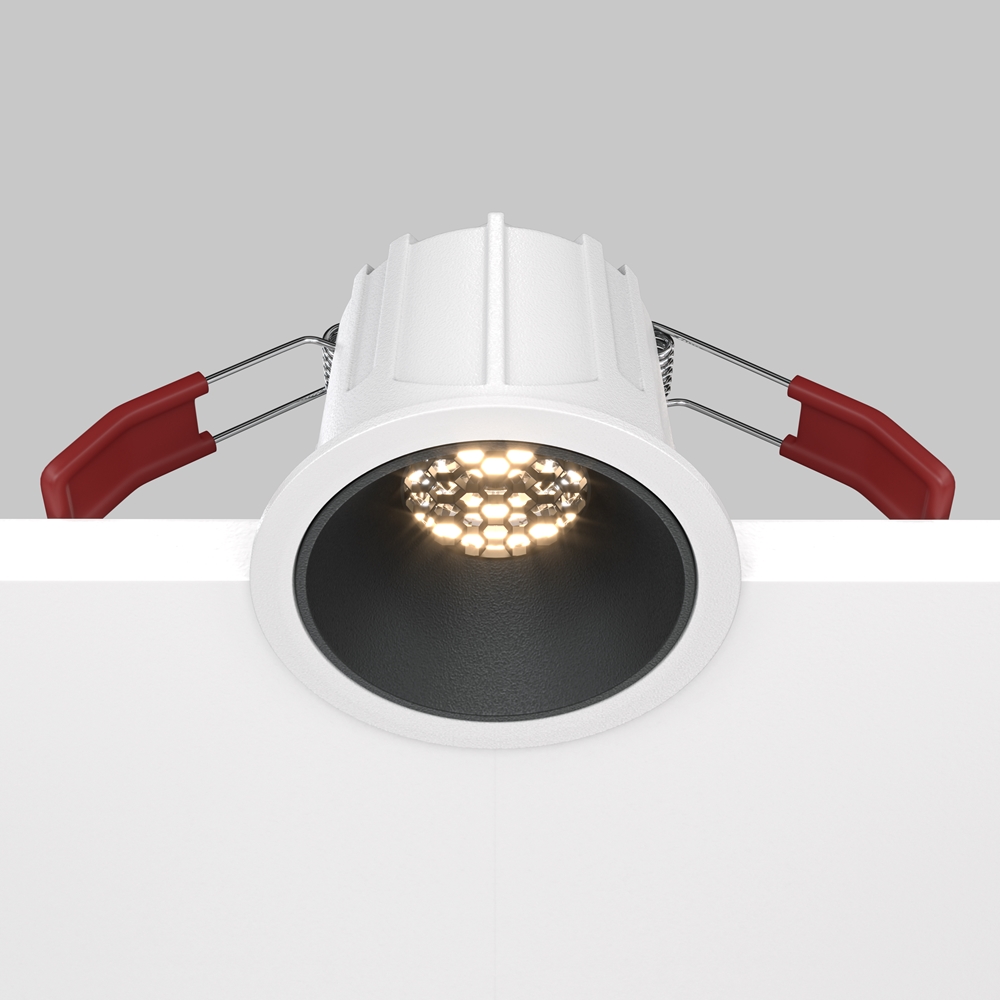

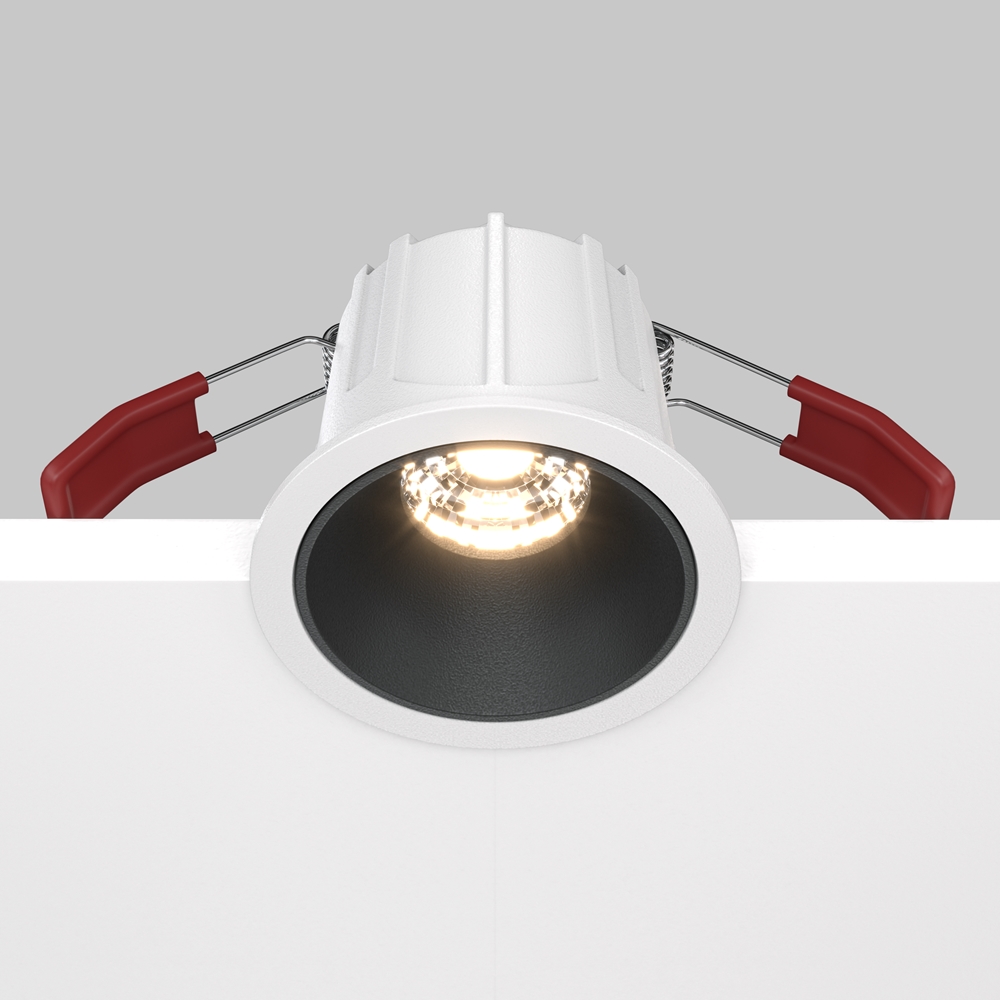

Downlight Alfa LED 3000K 1x10W 36° Dim Triac
DL043-01-10W3K-D-RD-WB
Copied
All characteristics
Color temperature , K
Power , W
Protection level
All characteristics
Article
DL043-01-10W3K-D-RD-WB
Short product code
71904
Brand
Technical
Collection
Downlight
Series
Alfa LED
Product type
Recessed luminaire
Fitting color
White
Fitting material
Aluminum and plastic
Accessories
Anti-glare grille
Color temperature
3000 К
IP protection
IP 20
Dimmable
Yes
Height
52 mm
Color rendering index
90 CRI
Scattering angle
36 °
Voltage
50Hz AC 220-240 V
Diameter
65 mm
Protection level
Class2
Warranty
5 years
Power
10 W
Volume
0.0008 m³
Light flux
450 Lm
The shape of the base
Round
Energy efficiency class
G
Fireproof
No
Packing length
95 mm
Net
0.165 kg
Gross
0.195 kg
Service life
30000 h
Mounting hole depth
60 mm
Mounting hole diameter
55 mm
Mounting hole shape
Round

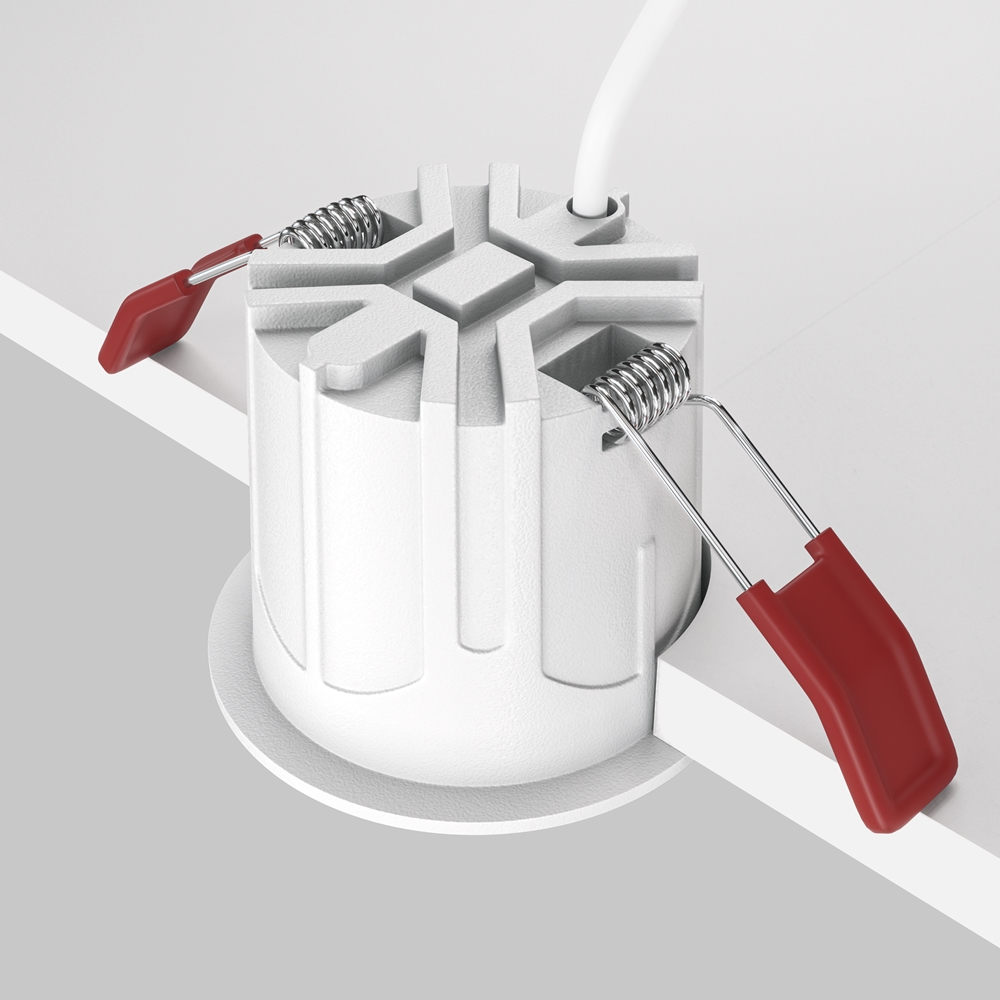

Mounting type
Recessed
Control protocol
Triac
Number of LEDs
1

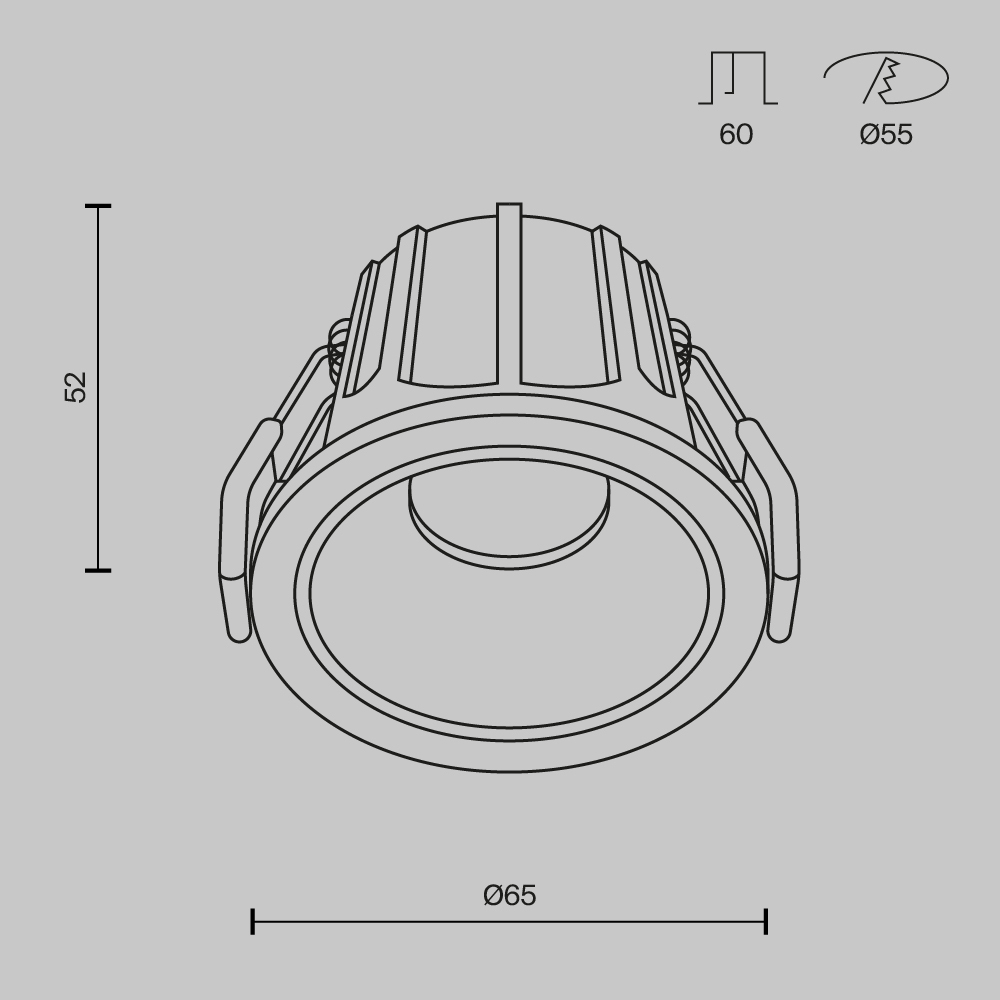

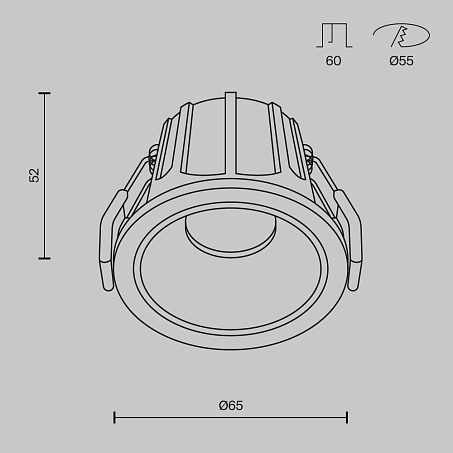

Drawing
All dimensions in mm
