Power , W
Base X Number of Lamps
Protection level
All characteristics
Available colors
Article
DL042-01-SQ-B
Short product code
71709
Brand
Technical
Collection
Downlight
Series
Dot
Product type
Recessed luminaire
Fitting color
Black
Fitting material
Aluminum
Light source
GU10
Number of lamps
1 pcs
IP protection
IP 20
Dimmable
No
Height
42 mm
Width
90 mm
Length
112 mm
Voltage
50Hz AC 220-240 V
Protection level
Class2
Warranty
2 years
Power
10 W
Volume
0.0006 m³
The shape of the base
Rectangular
Fireproof
No
Packing length
120 mm
Net
0.12 kg
Gross
0.15 kg
Installation depth with lamp
120 mm
Mounting hole depth
120 mm
Mounting hole length
80 mm
Mounting Hole Width
80 mm
Mounting hole shape
Rectangular

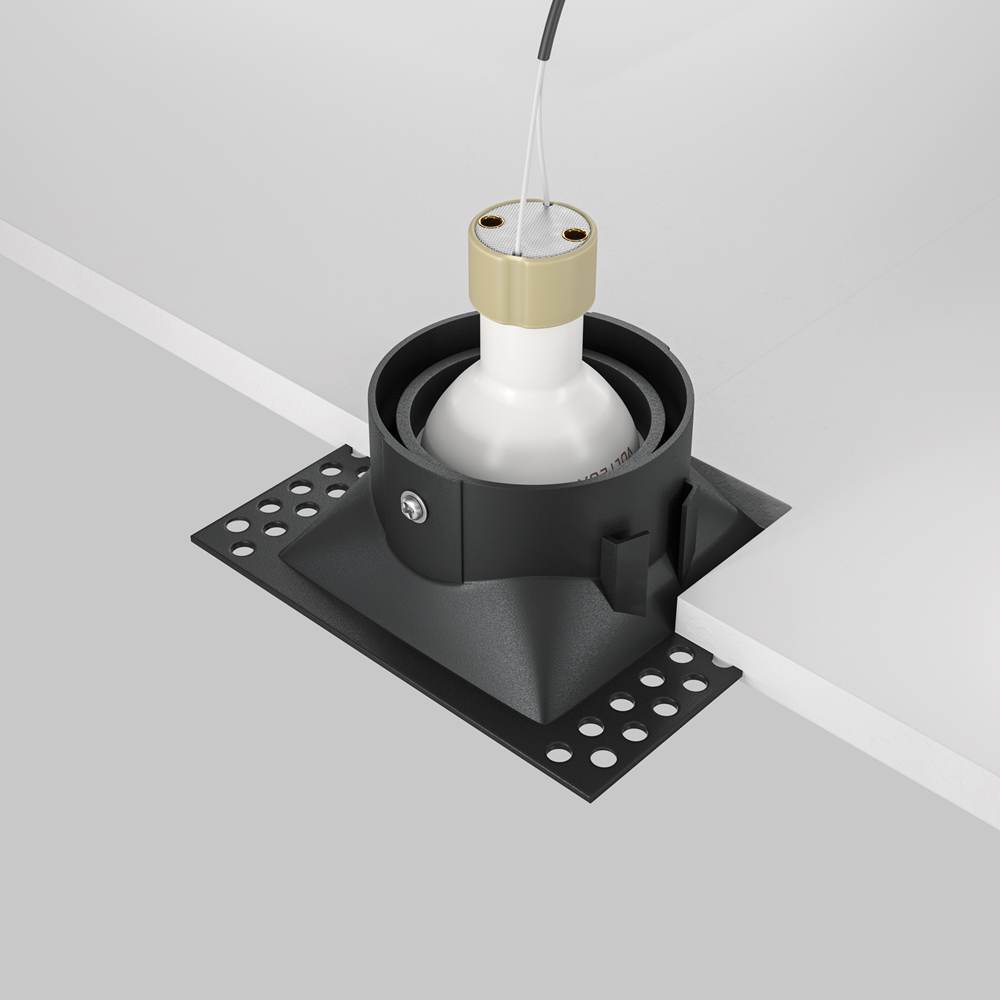

Mounting type
Recessed for plaster finish

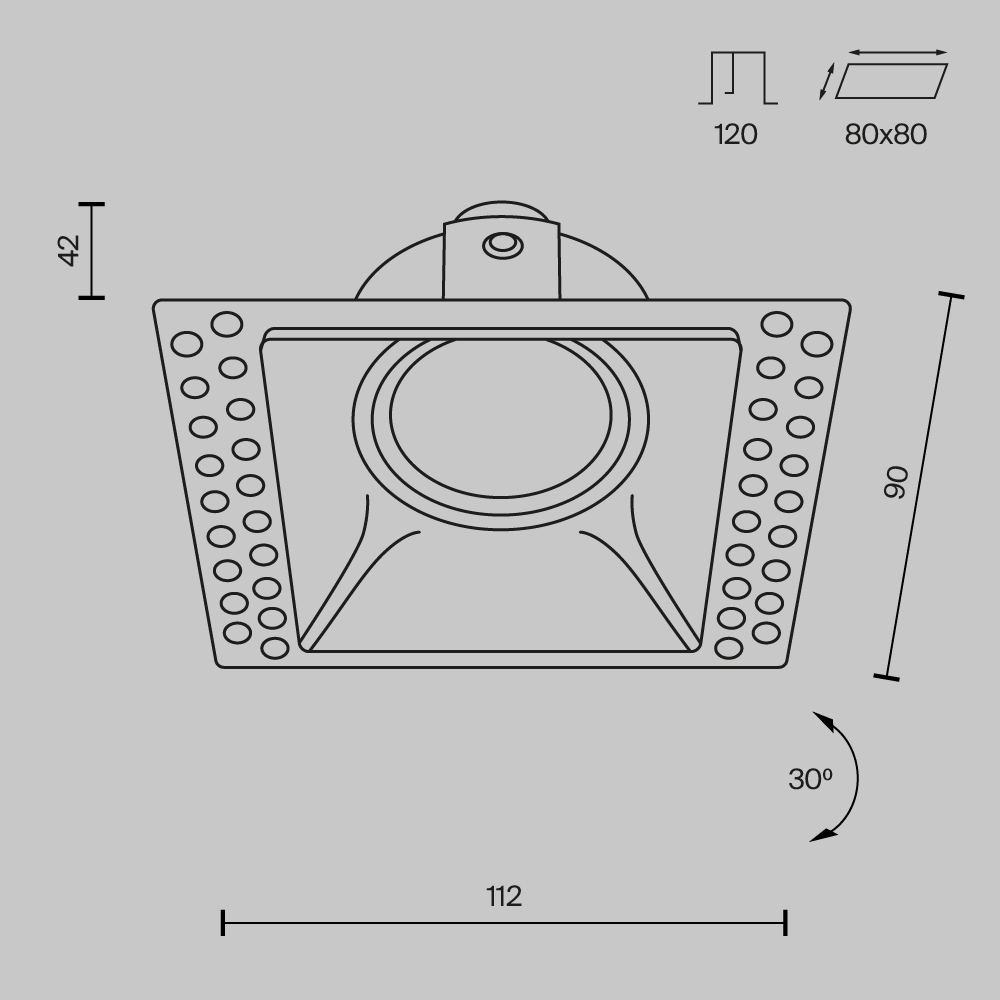

Drawing
All dimensions in mm
Please choose no more than 3 images

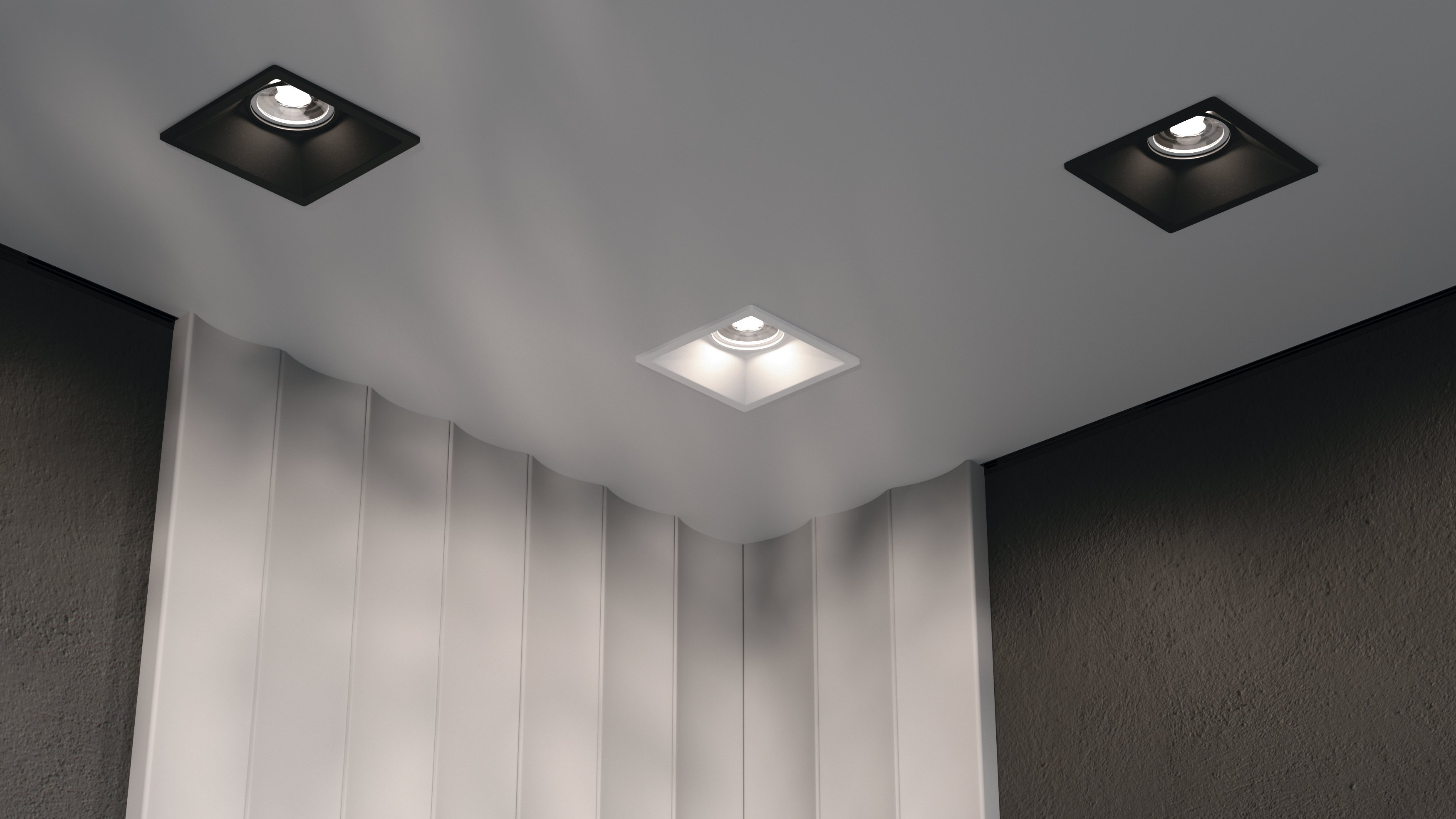

About series Dot

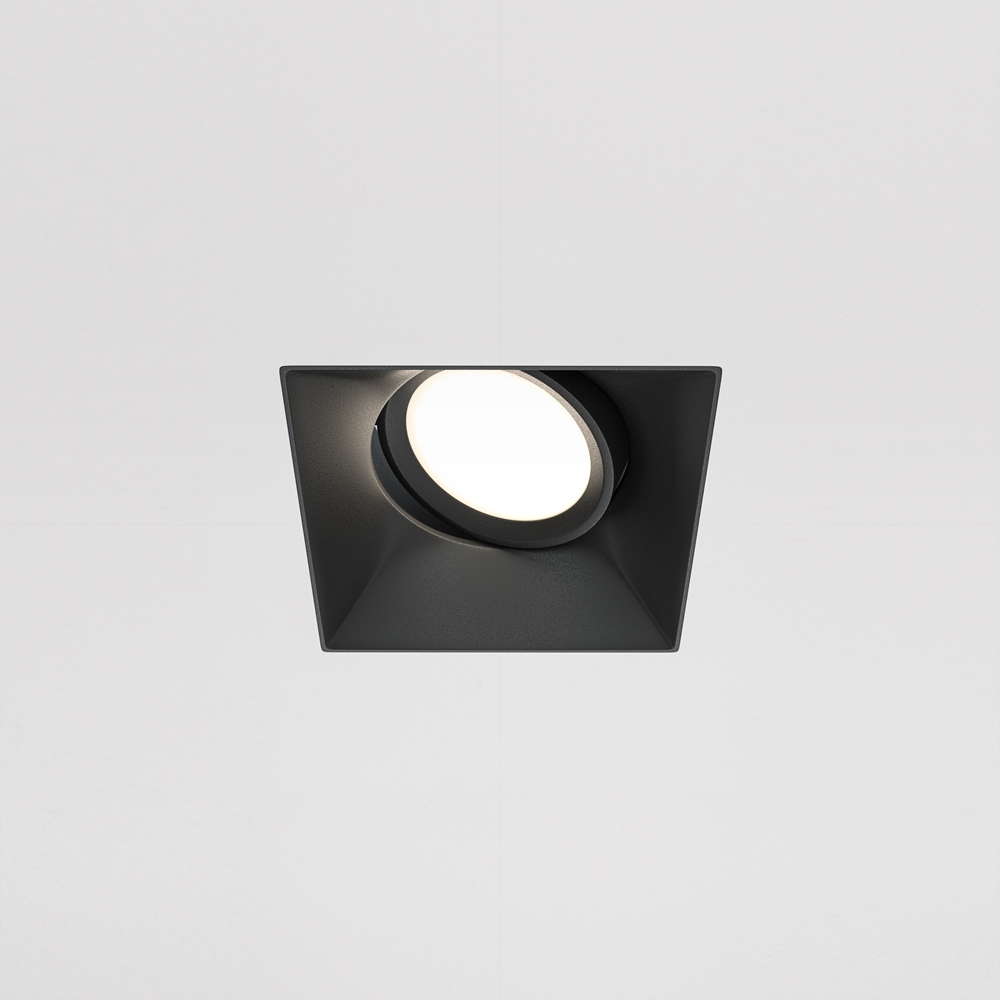

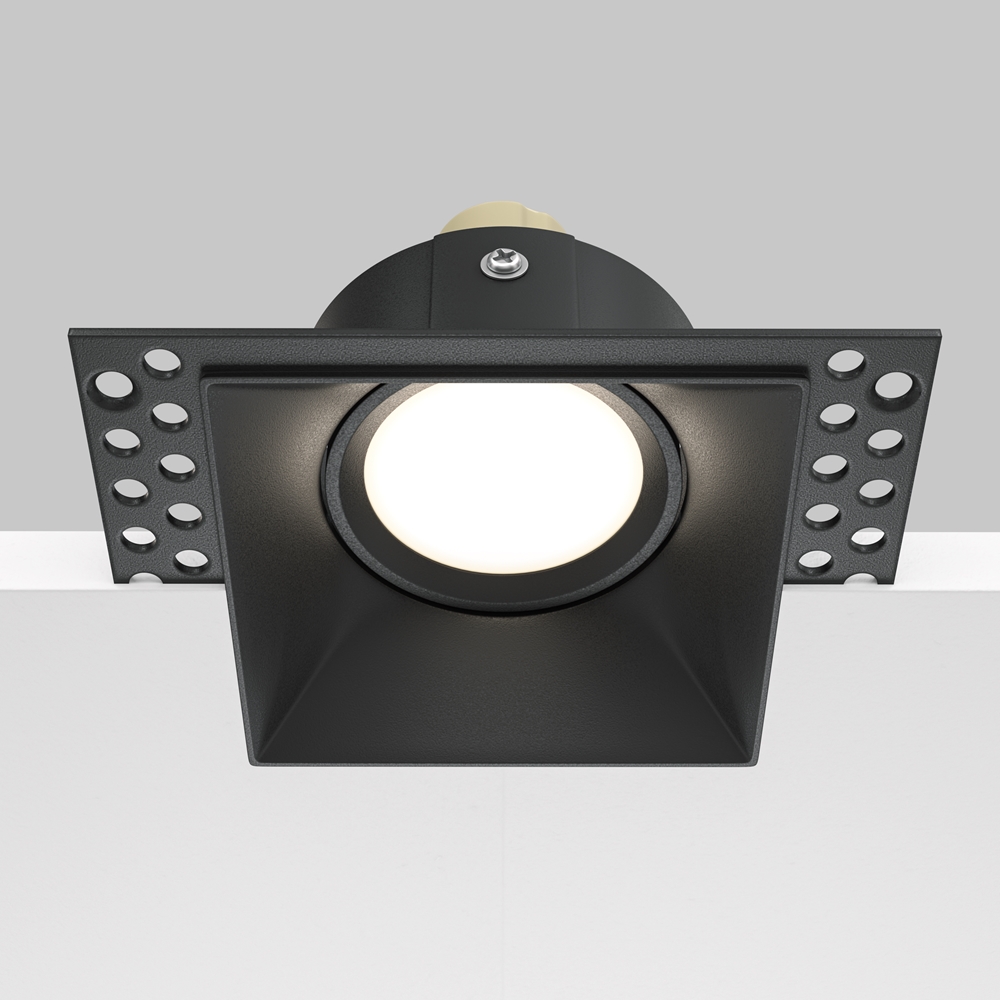

Aluminum case. Swivel mechanism for adjusting the light flux. Light source - GU10 lamp (not included).
