Recessed luminaires
Downlight Yin 4000K 1x12W 60° Dim Triac
DL031-L12W4K-D-B
Copied
All characteristics
Color temperature , K
Power , W
Protection level
All characteristics
Article
DL031-L12W4K-D-B
Short product code
71943
Brand
Technical
Collection
Downlight
Series
Yin
Product type
Recessed luminaire
Fitting color
Black
Fitting material
Aluminum
Color temperature
4000 К
IP protection
IP 20
Dimmable
Yes
Height
75 mm
Color rendering index
90 CRI
Scattering angle
60 °
Voltage
50Hz AC 220-240 V
Diameter
98 mm
Protection level
Class2
Warranty
5 years
Power
12 W
Volume
0.0019 m³
Light flux
820 Lm
The shape of the base
Round
Energy efficiency class
G
Fireproof
No
Packing length
140 mm
Net
0.43 kg
Gross
0.48 kg
Service life
30000 h
Mounting hole depth
90 mm
Mounting hole diameter
85 mm
Mounting hole shape
Round
Mounting type
Recessed
Control protocol
Triac
Number of LEDs
1

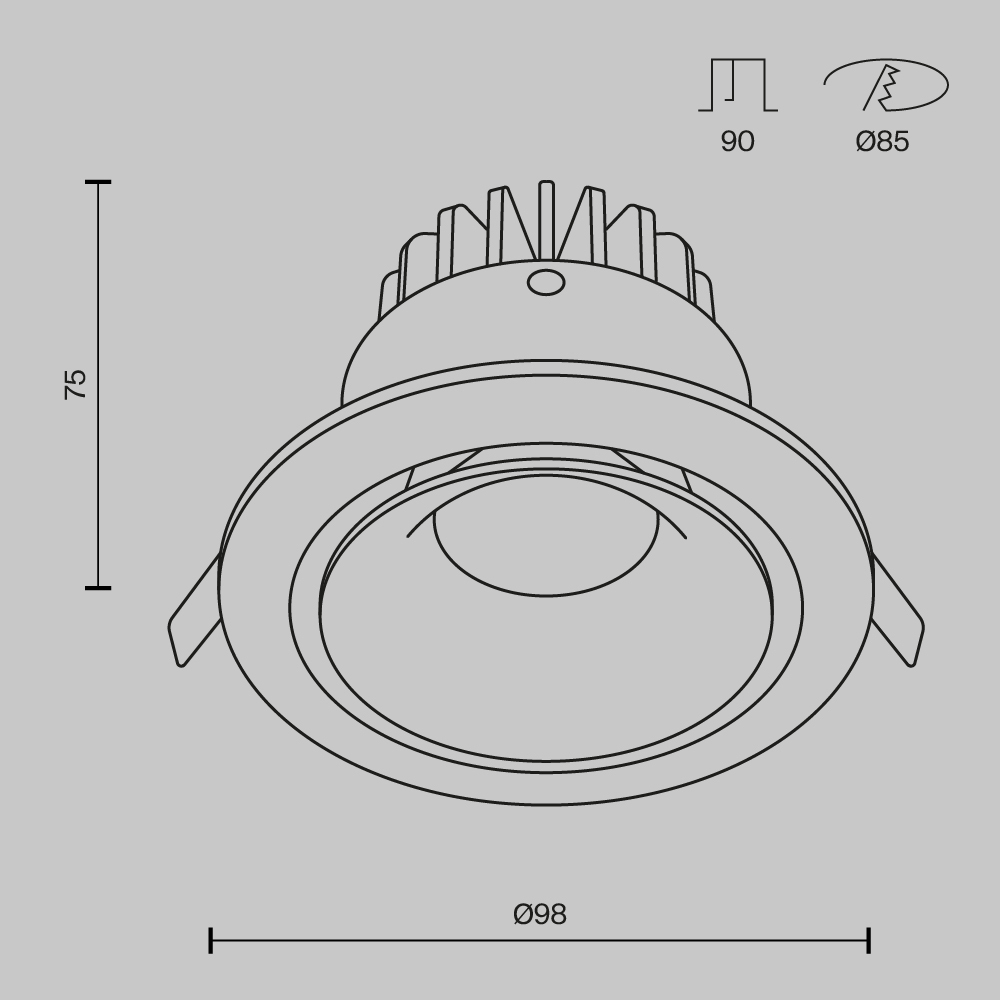

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Yin
Built-in ceiling lamp. Metal frame with powder painting.
