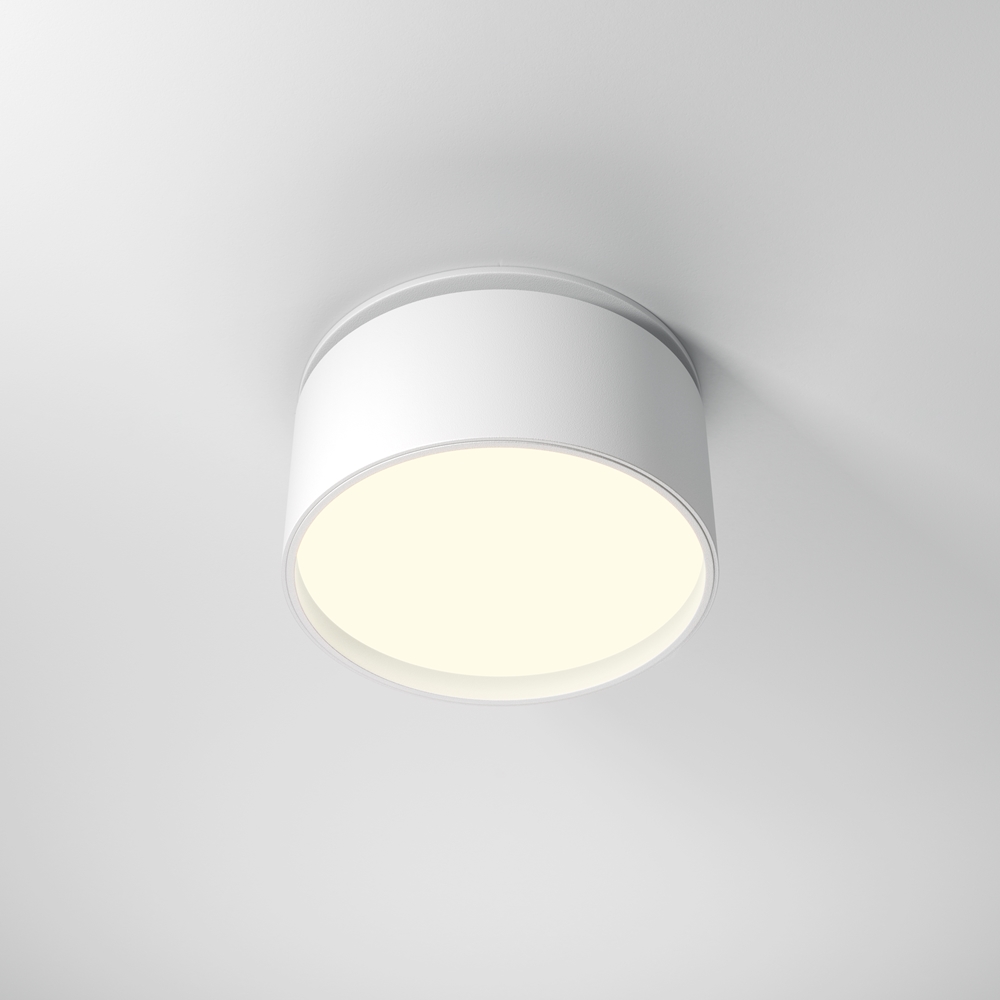

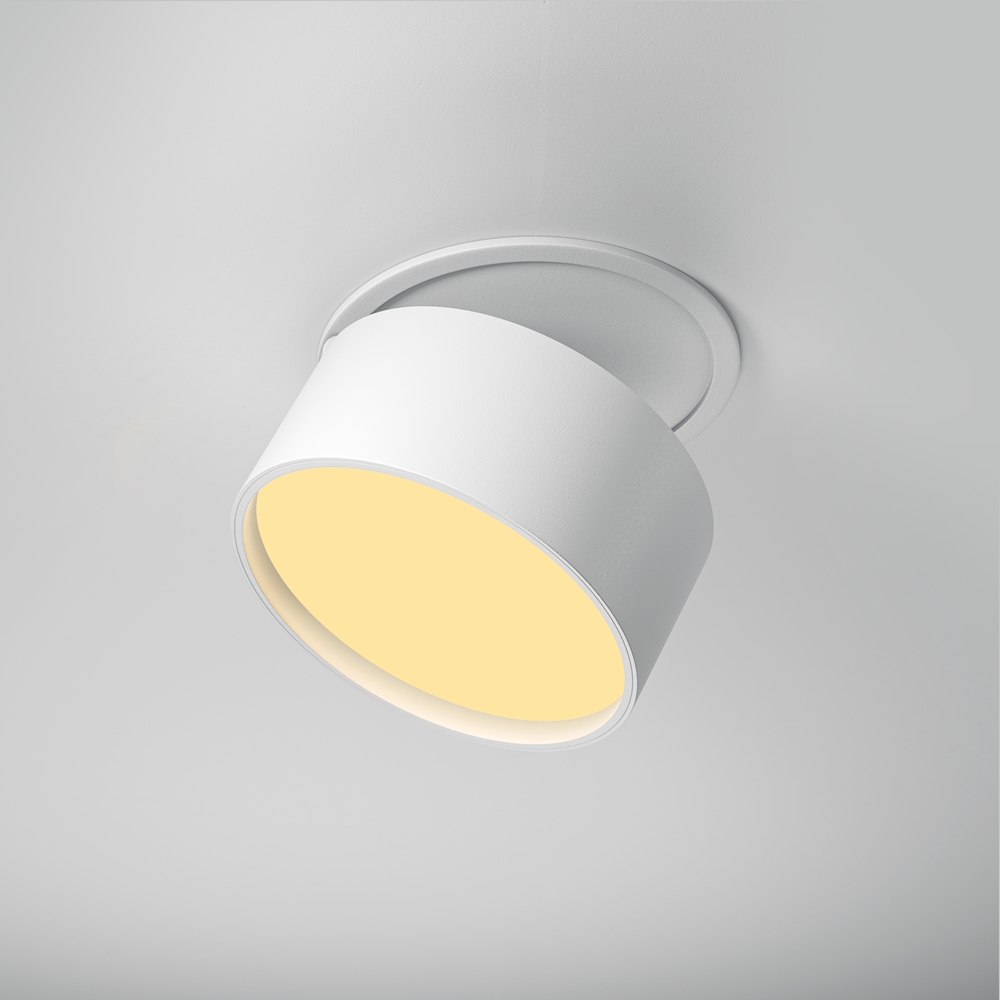

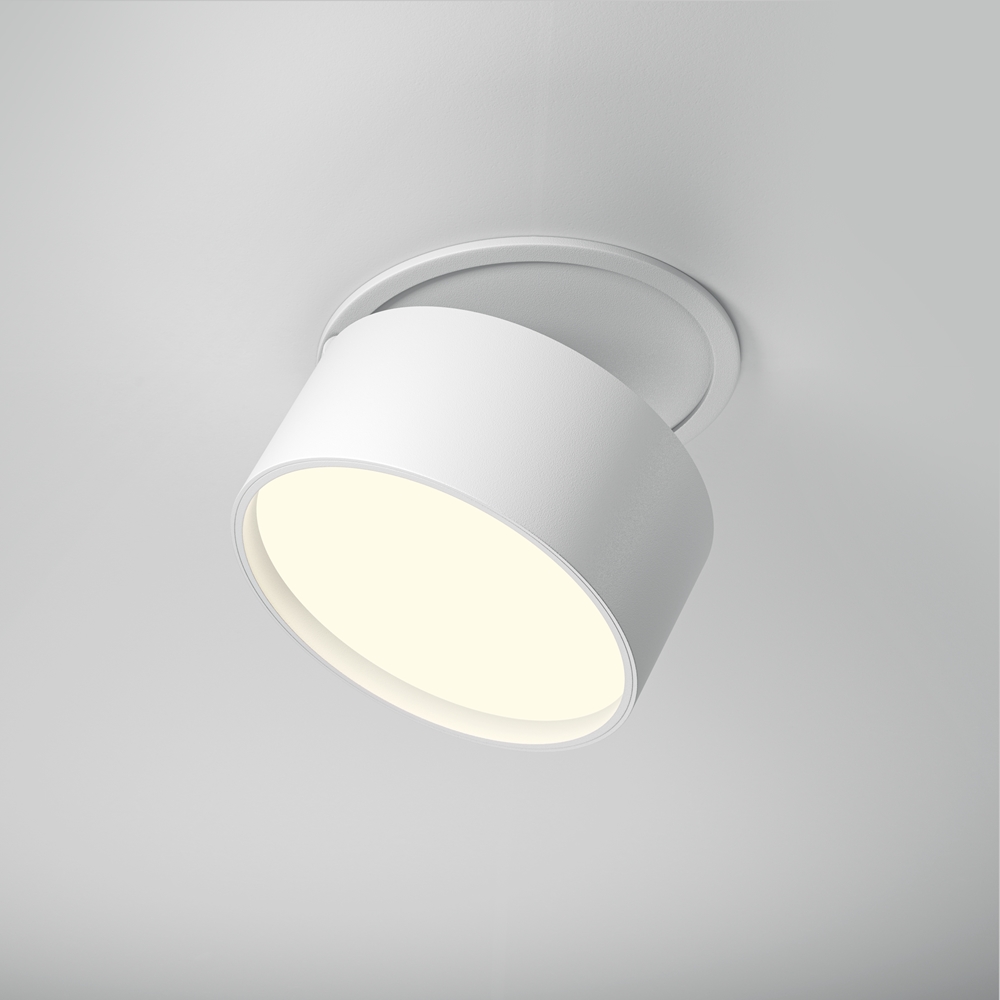

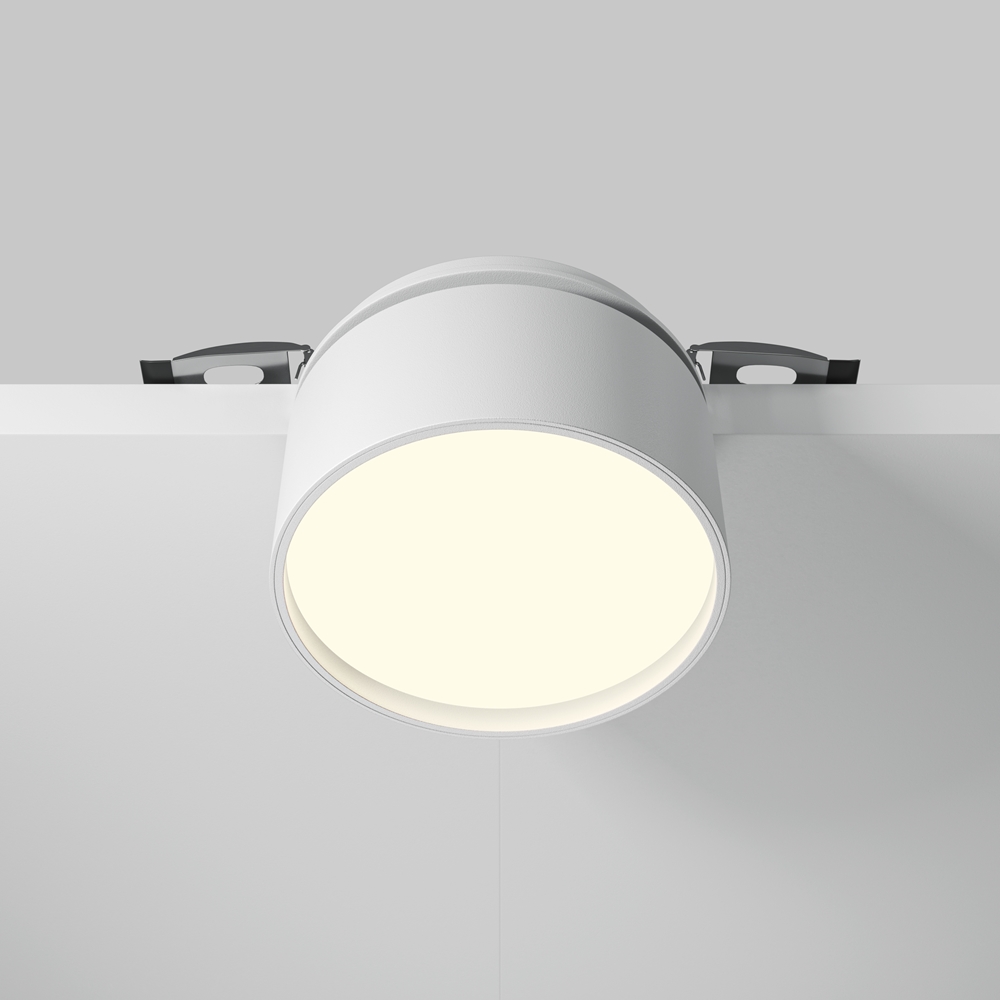

Recessed luminaire Onda 2200-4000K 12W 120˚
DL024-12W-DTW-W
Copied
All characteristics
Power , W
Protection level
All characteristics
Article
DL024-12W-DTW-W
Short product code
79347
Brand
Technical
Collection
Downlight
Series
Onda
Product type
Recessed luminaire
Fitting color
White
Fitting material
Aluminum
IP protection
IP 20
Dimmable
Yes
Height
66 mm
Color rendering index
90 CRI
Scattering angle
120 °
Minimum color temperature
2200 K
Maximum color temperature
4000 K
Voltage
50Hz AC 220-240 V
Diameter
85 mm
Protection level
Class2
Warranty
5 years
Power
12 W
Volume
0.0012 m³
The shape of the base
Round
Energy efficiency class
F
Fireproof
No
Packing length
120 mm
Net
0.29 kg
Gross
0.32 kg
Service life
30000 h
Mounting hole depth
40 mm
Mounting hole diameter
82 mm
Mounting hole shape
Round

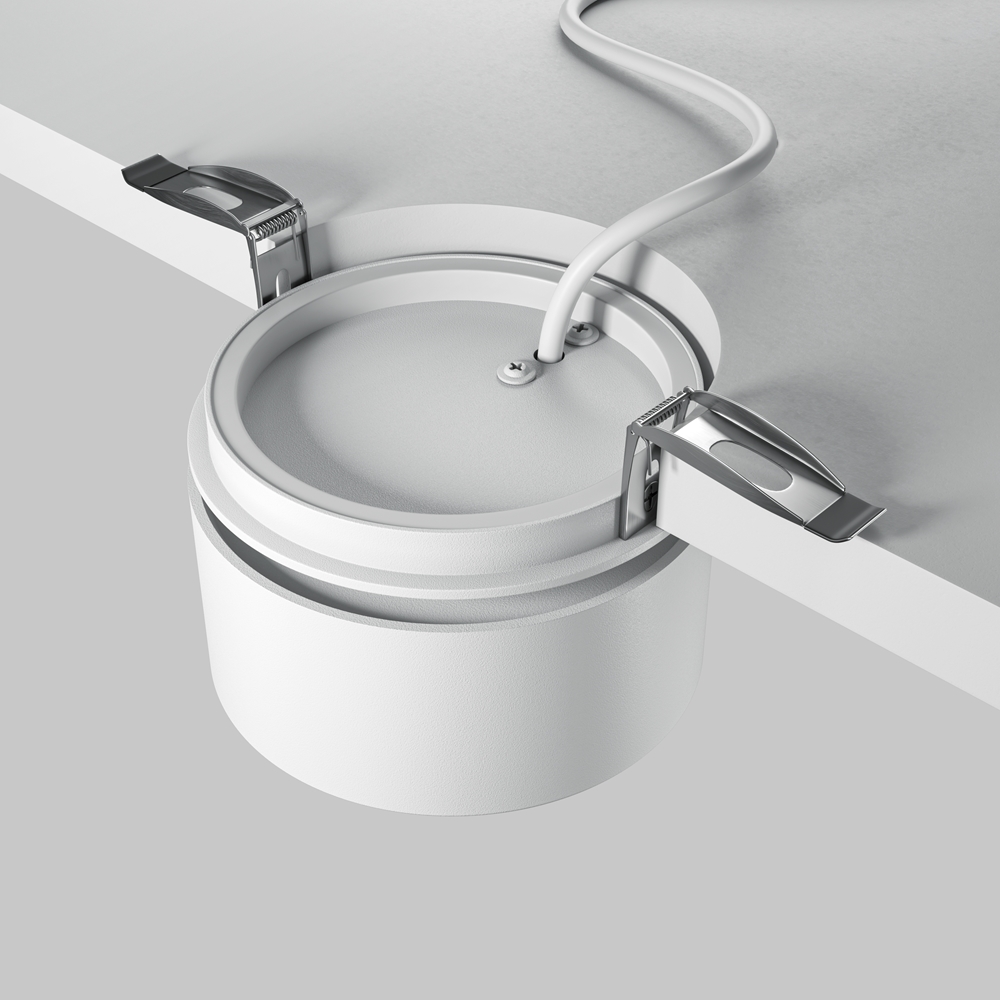

Mounting type
Recessed
Control protocol
Triac
Number of LEDs
1

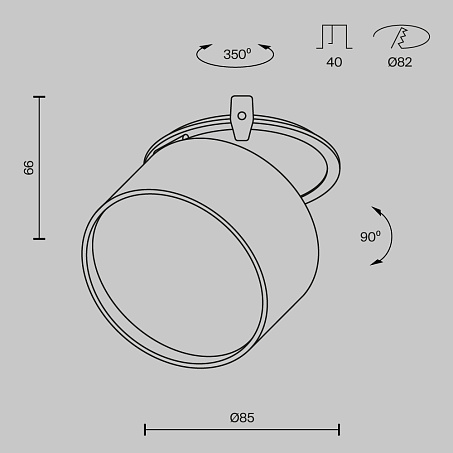

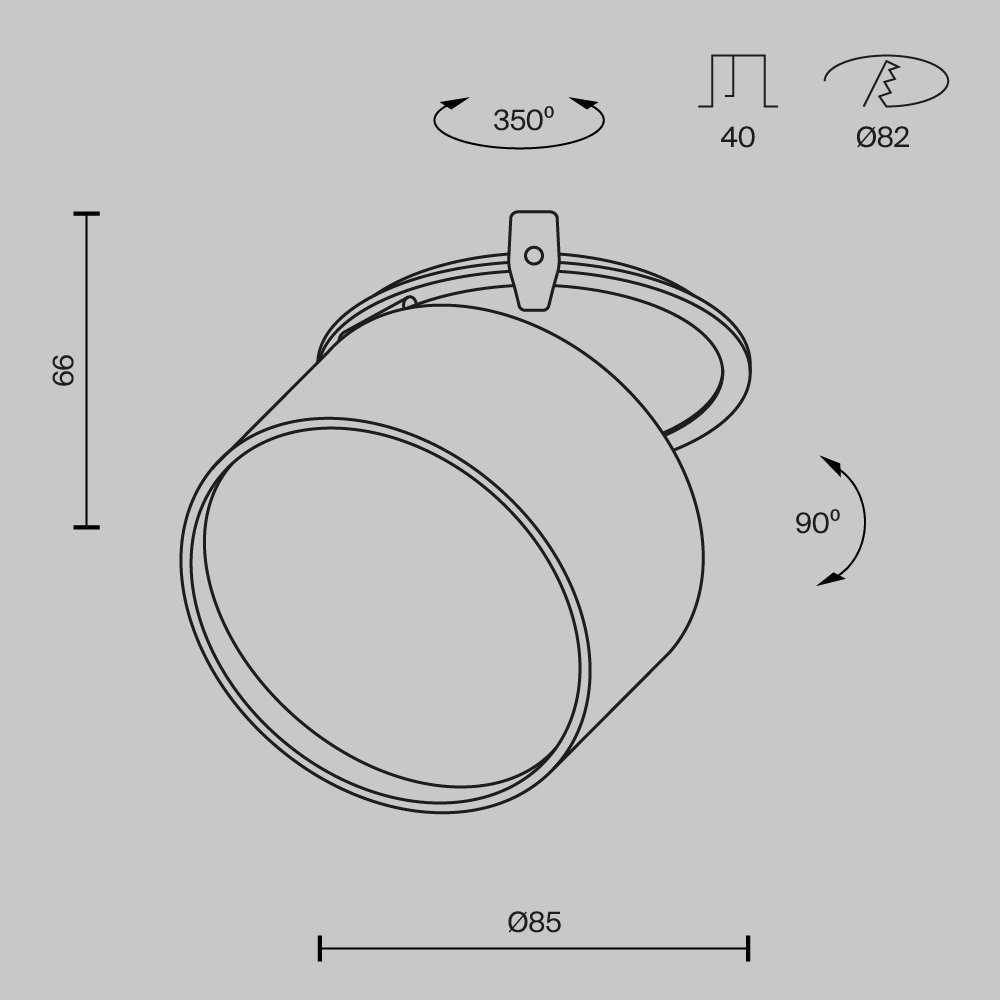

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Onda

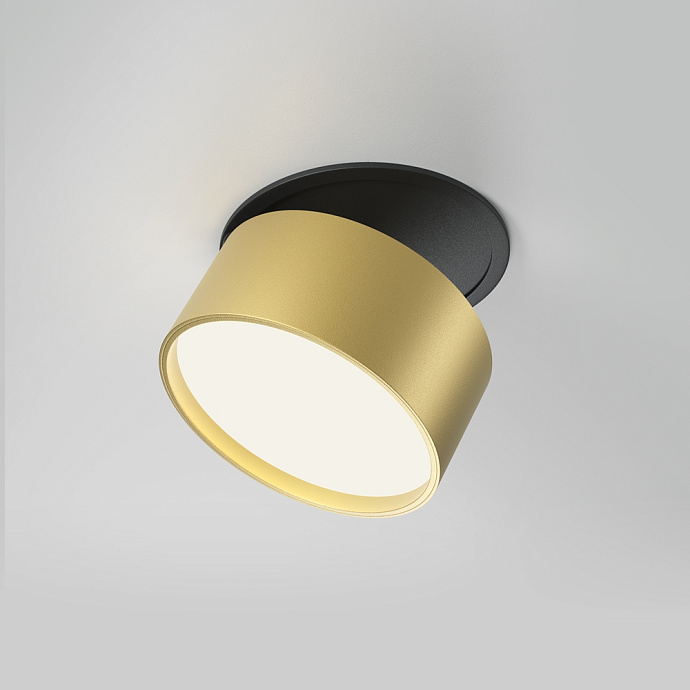

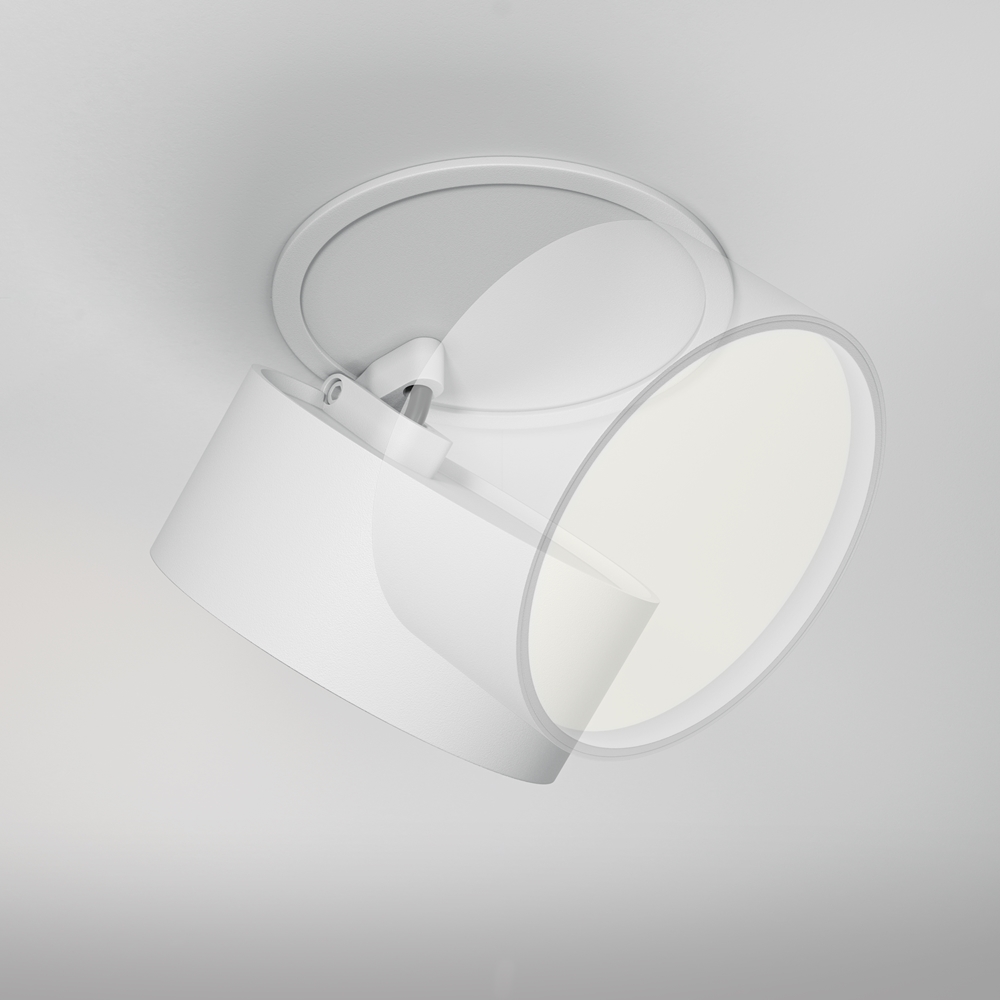

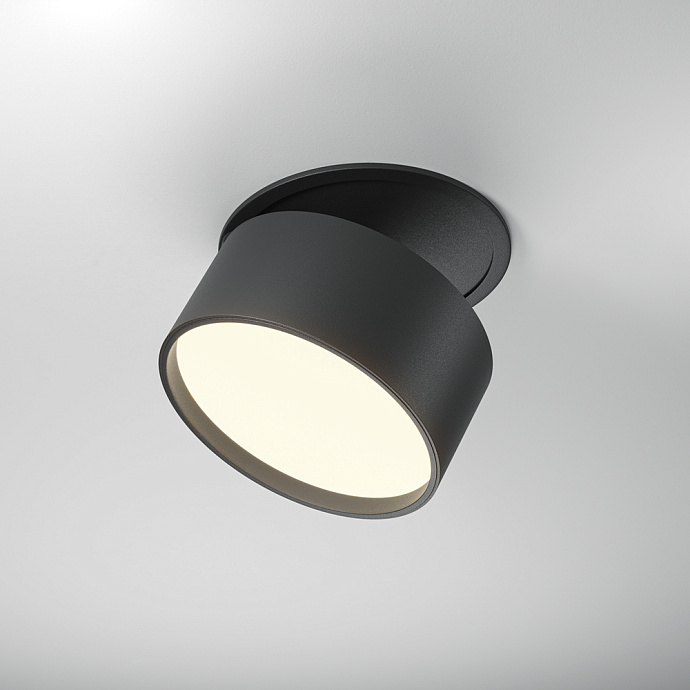

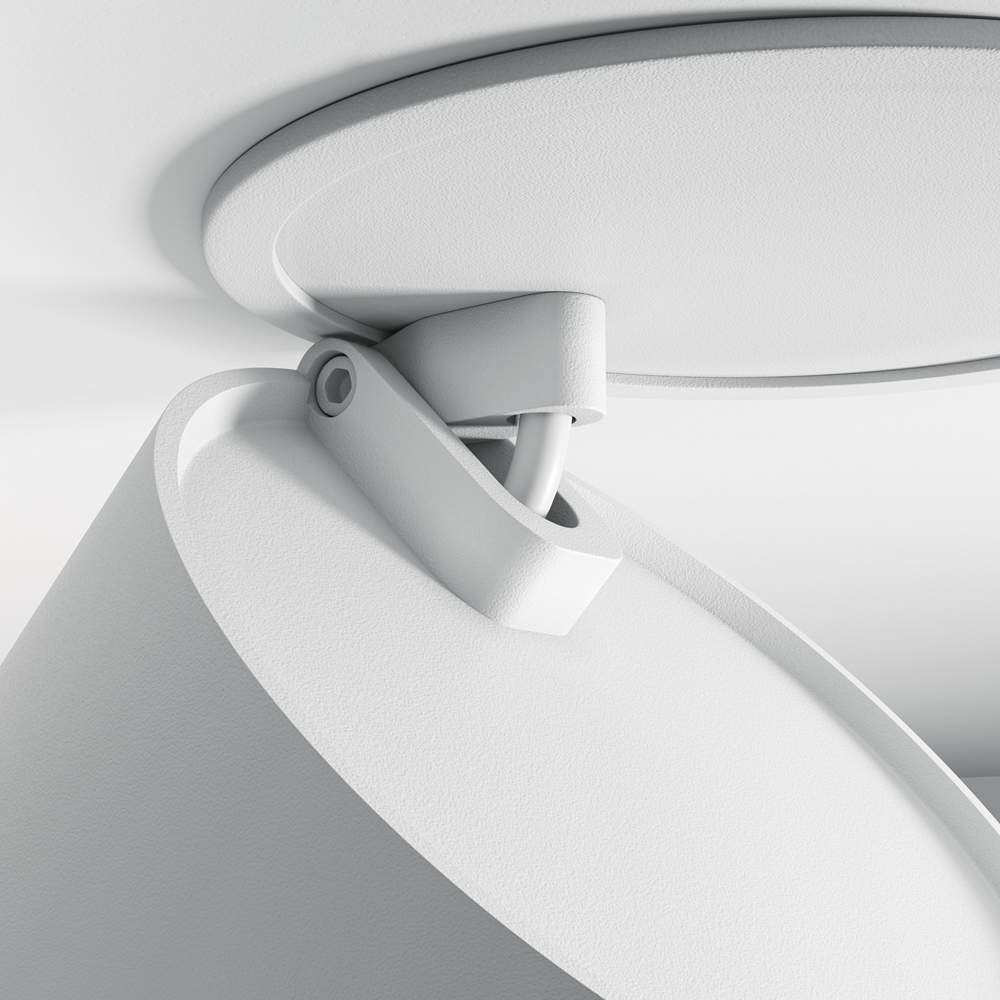

The Onda luminaire embodies adaptability and versatility. Its sleek metal housing is available in white, classic black, or a sophisticated black and matte gold combination. Thanks to its adjustable swivel mechanism, the light can be directed precisely where it's needed. Onda offers a choice of wattages and color temperatures, including biodynamic models. With a wide 120° beam angle and a high color rendering index (CRI >90), it delivers comfortable, natural illumination that enhances any environment. Compatible with both DALI and Triac dimming systems, Onda is ready to integrate seamlessly into the smart homes of tomorrow - where comfort, control, and performance go hand in hand.
