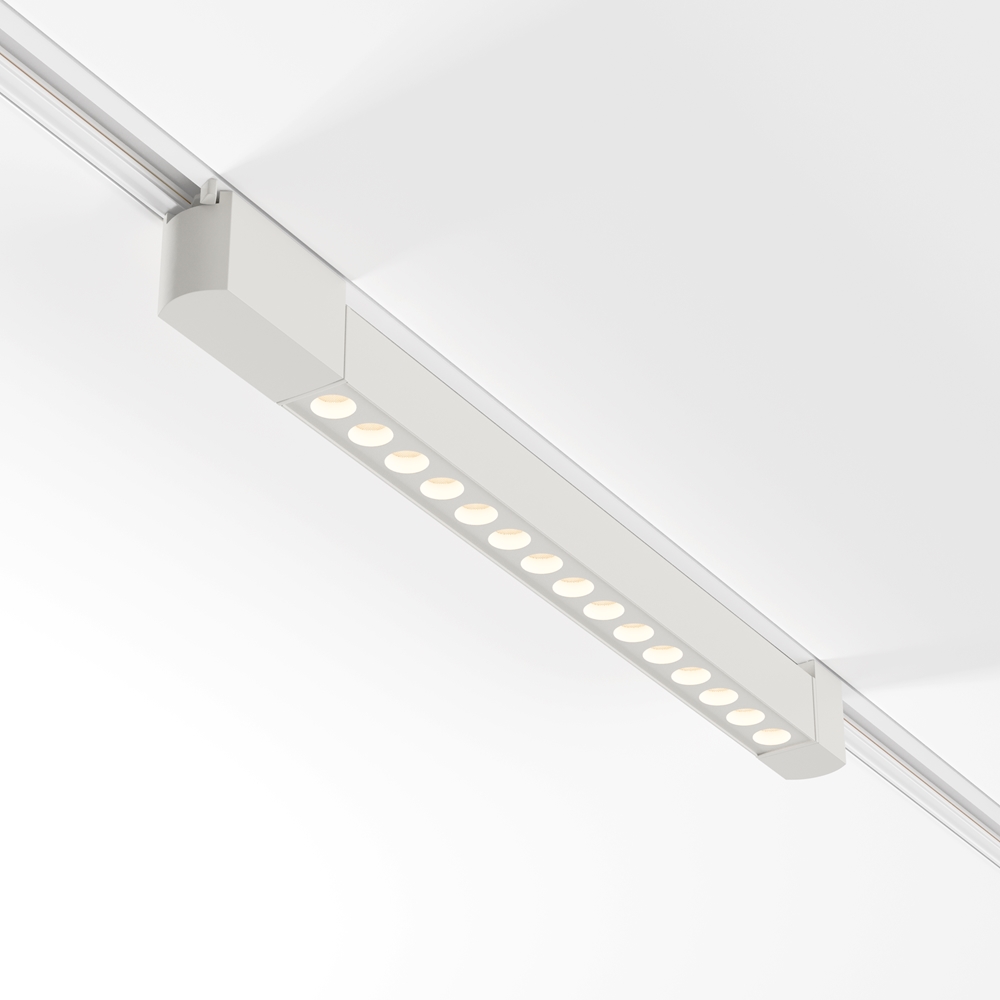

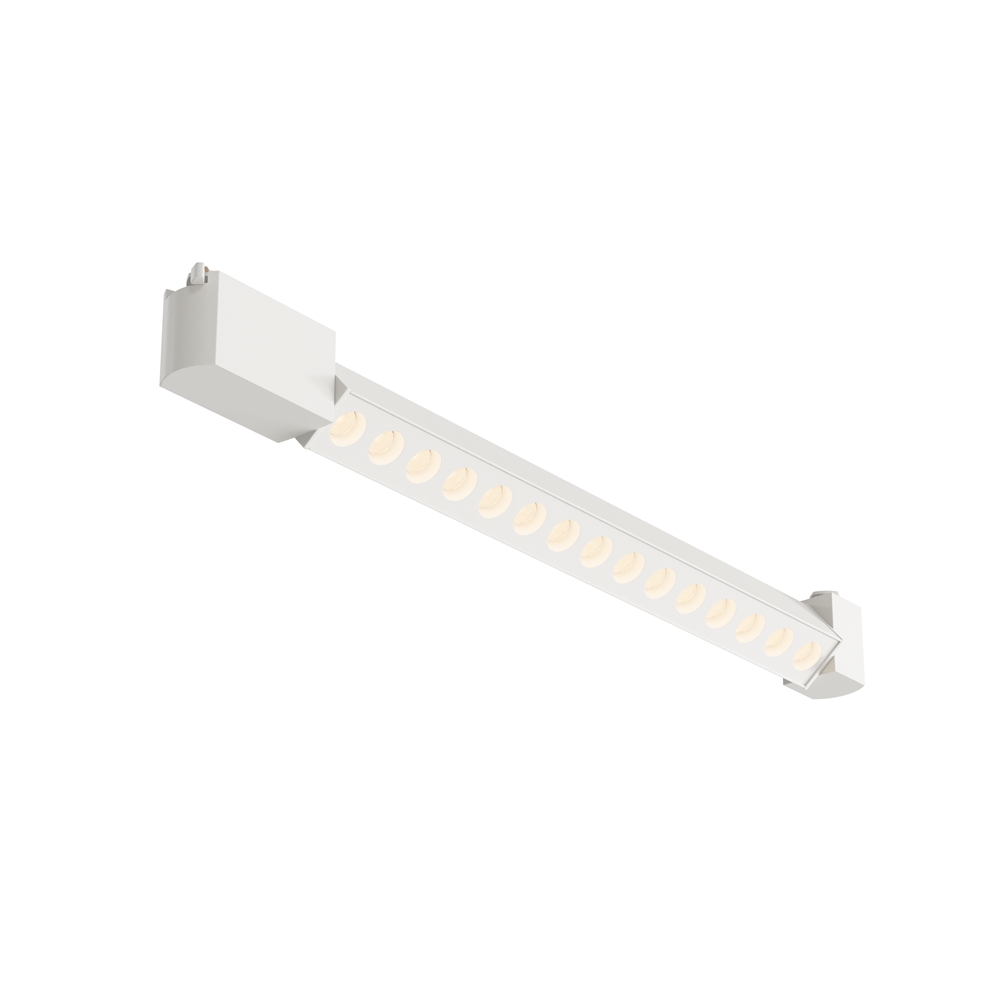

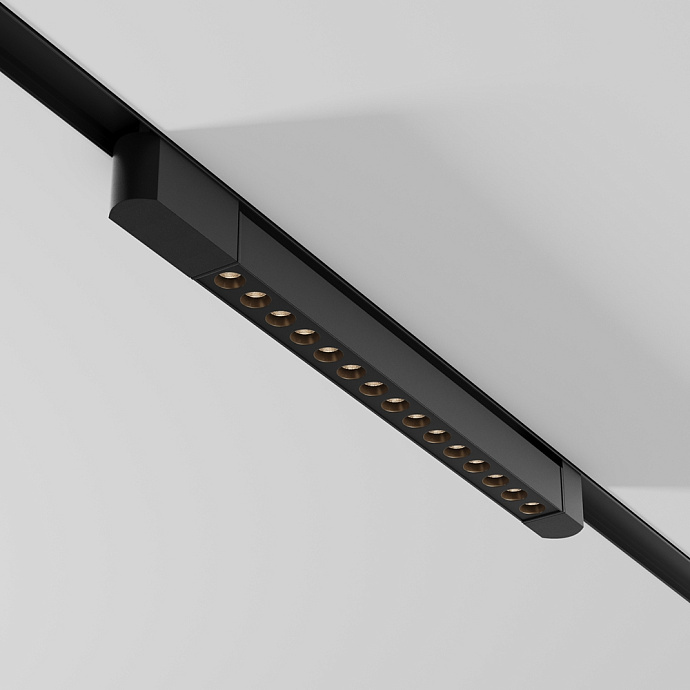

Track luminaire Points Rot Unity 3000K 22W 30°
TR010-1-22W3K-M-W-DE
Copied
All characteristics
Color temperature , K
Power , W
Protection level
All characteristics
Available colors
Article
TR010-1-22W3K-M-W-DE
Analogue
TR010-1-20W3K-M-W
Short product code
78346
Old product code
TR010-1-20W3K-M-W
Brand
Technical
Collection
Single-phase track system UNITY
Series
Points
Product type
Track luminaire
Fitting color
White
Fitting material
Aluminum and plastic
Color temperature
3000 К
IP protection
IP 20
Dimmable
No
Height
46 mm
Width
33 mm
Color rendering index
90 CRI
Length
510 mm
Scattering angle
30 °
Voltage
50Hz AC 220-240 V
Protection level
Class2
Warranty
3 years
Power
22 W
Volume
0.0013 m³
Maximum height
46 mm
Light flux
1130 Lm
Base diameter
46 mm
Mounting hole depth
20 mm
Mounting Hole Width
33 mm
Energy efficiency class
G
Fireproof
No
Packing length
62 mm
Net
0.5 kg
Gross
0.6 kg
Service life
50000 h
Number of LEDs
20

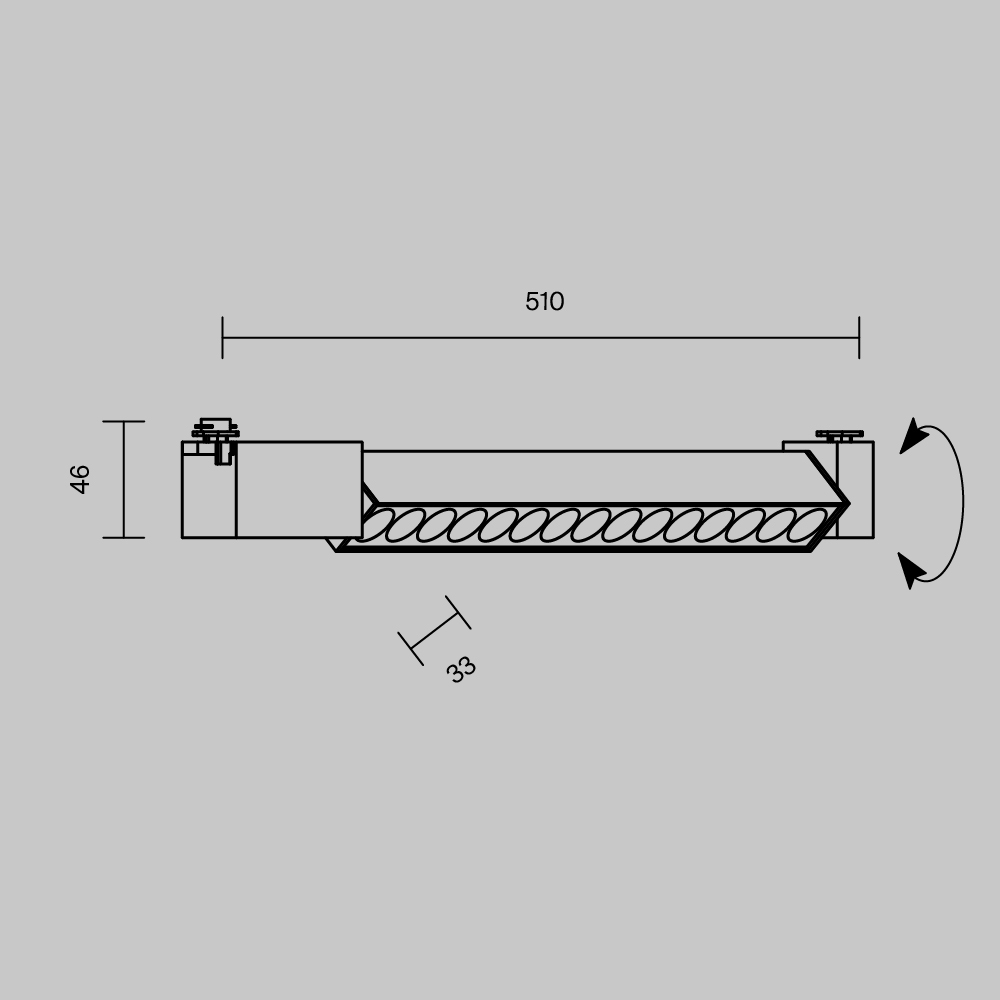

Drawing
All dimensions in mm
Please choose no more than 3 images
About series Points
The Points Rot series luminaire is available in ever-stylish black and white versions.
The solution is perfect for illuminating homes and workplaces, creating a warm ambiance. Its contemporary, streamlined aesthetic is versatile for diverse spaces. The light's high-quality aluminum housing ensures reliability and durability. It features a swivel mechanism for directing the beam and a recessed light source with classic 3000K and 4000K color temperatures. Its streamlined and efficient design seamlessly fits into ceiling installations. The recessed light source offers soft and evenly distributed illumination, while the swivel mechanism lets you adjust the light angle as needed. The light consumes very little energy and will last for a long time. The solution is compatible with the Unity track system, making it easy to install and integrate into existing lighting architecture. The product is covered by a 5-year warranty, and we offer technical support.
The solution is perfect for illuminating homes and workplaces, creating a warm ambiance. Its contemporary, streamlined aesthetic is versatile for diverse spaces. The light's high-quality aluminum housing ensures reliability and durability. It features a swivel mechanism for directing the beam and a recessed light source with classic 3000K and 4000K color temperatures. Its streamlined and efficient design seamlessly fits into ceiling installations. The recessed light source offers soft and evenly distributed illumination, while the swivel mechanism lets you adjust the light angle as needed. The light consumes very little energy and will last for a long time. The solution is compatible with the Unity track system, making it easy to install and integrate into existing lighting architecture. The product is covered by a 5-year warranty, and we offer technical support.

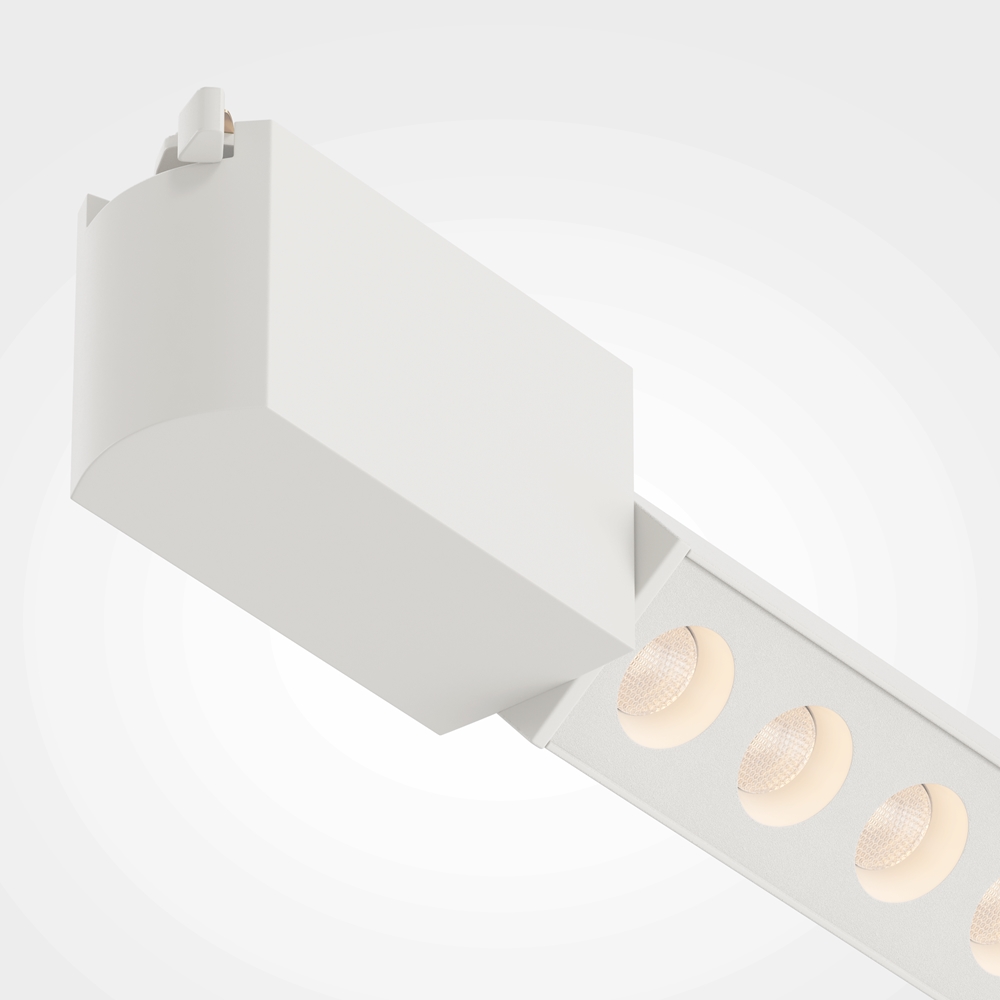

Swivel mechanism
The efficient mechanism allows you to direct the light, emphasizing what is important.
High eye comfort
The LED light source is recessed in the housing, which helps reduce glare.
High color rendering index
The perfect perception and display of interior objects and colors are ensured by a high color rendering index of over 90 Lm/W.
