Recessed luminaires

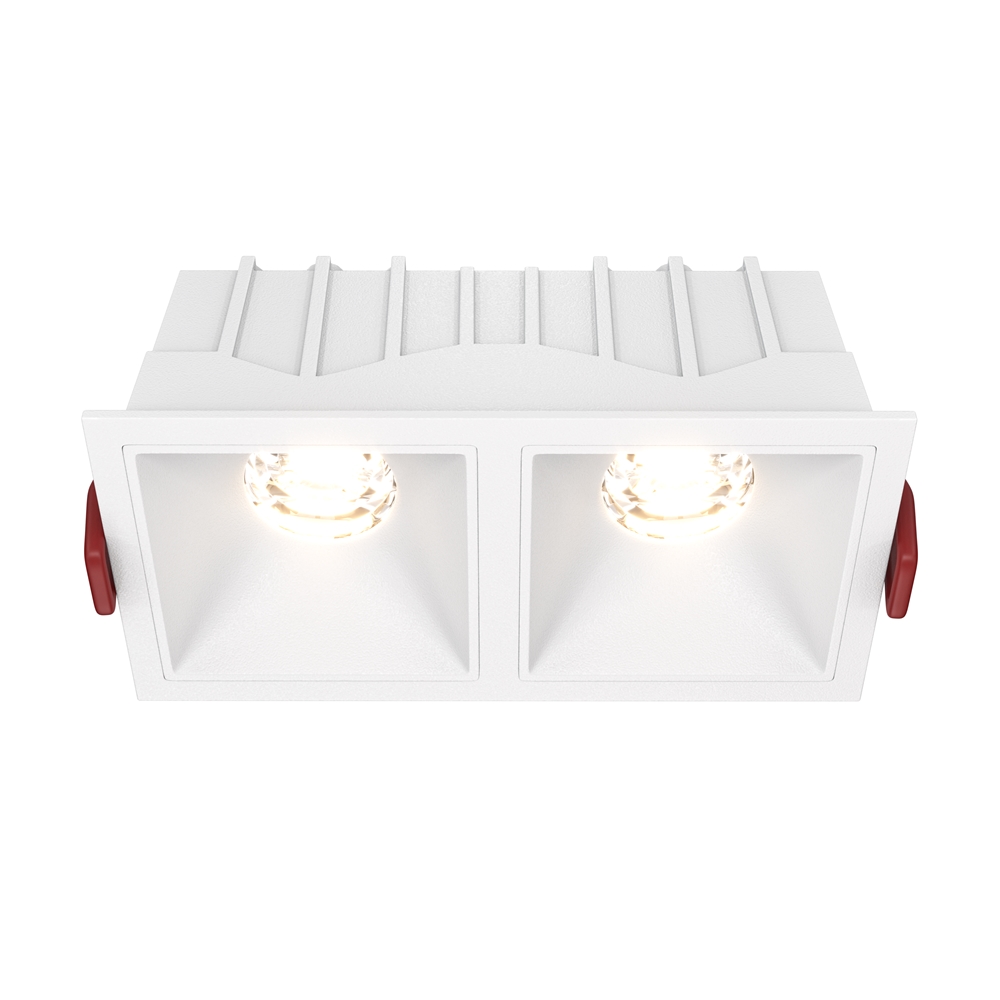

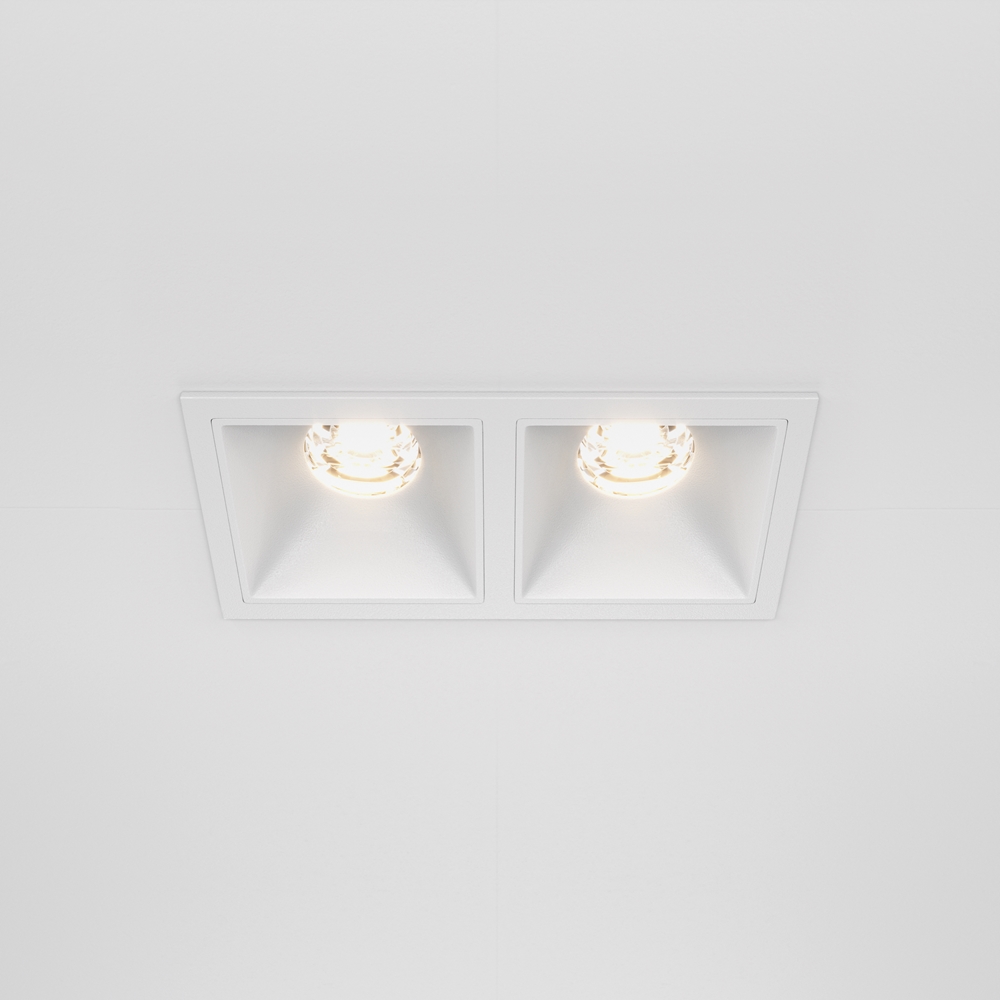

Downlight Alfa LED 3000K 2x10W 36° Dim Triac
DL043-02-10W3K-D-SQ-W
Copied
All characteristics
Color temperature , K
Power , W
Protection level
All characteristics

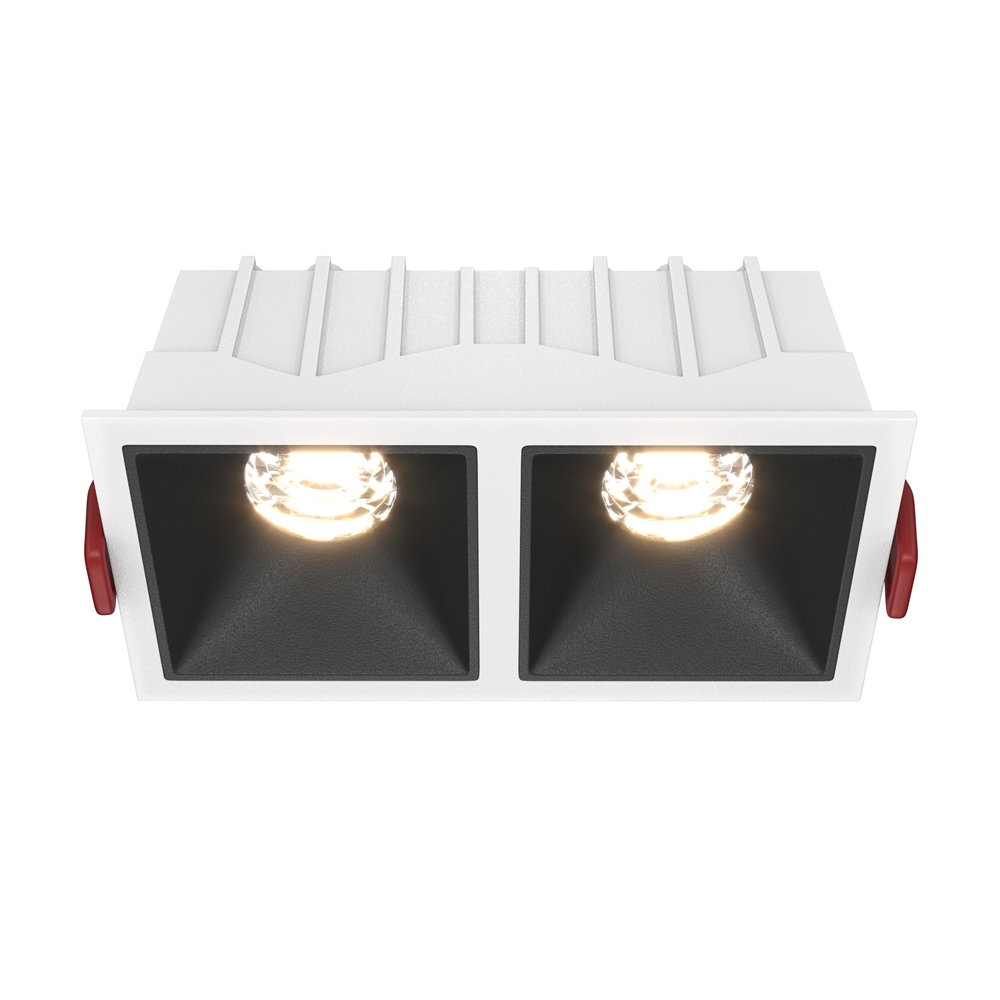

Available colors
Article
DL043-02-10W3K-D-SQ-W
Short product code
72117
Brand
Technical
Collection
Downlight
Series
Alfa LED
Product type
Recessed luminaire
Fitting color
White
Fitting material
Aluminum and plastic
Accessories
Anti-glare grille
Color temperature
3000 К
IP protection
IP 20
Dimmable
Yes
Height
52 mm
Width
65 mm
Color rendering index
90 CRI
Length
126 mm
Scattering angle
36 °
Voltage
50Hz AC 220-240 V
Protection level
Class2
Warranty
5 years
Power
20 W
Volume
0.0011 m³
Light flux
1000 Lm
The shape of the base
Rectangular
Energy efficiency class
D
Fireproof
No
Packing length
145 mm
Net
0.38 kg
Gross
0.42 kg
Service life
30000 h
Mounting hole depth
60 mm
Mounting hole length
115 mm
Mounting Hole Width
55 mm
Mounting hole shape
Rectangular

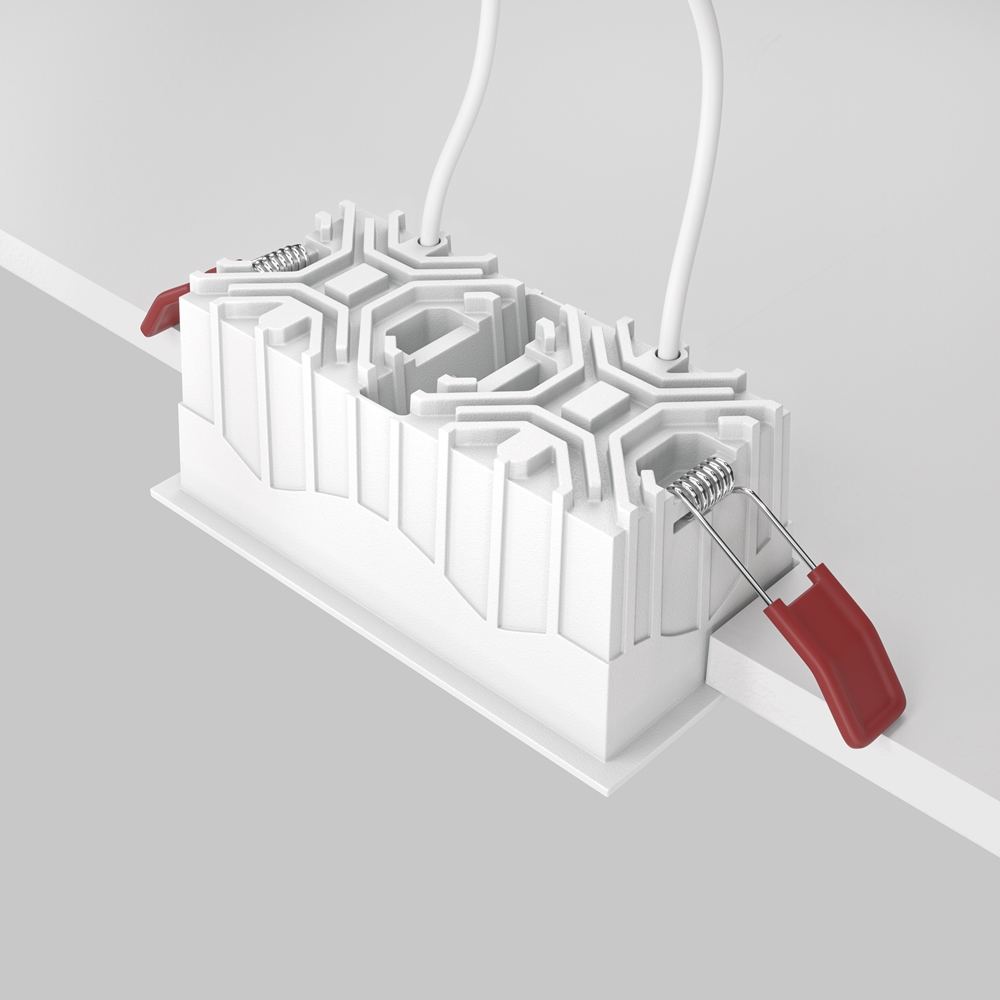

Mounting type
Recessed
Control protocol
Triac
Number of LEDs
2

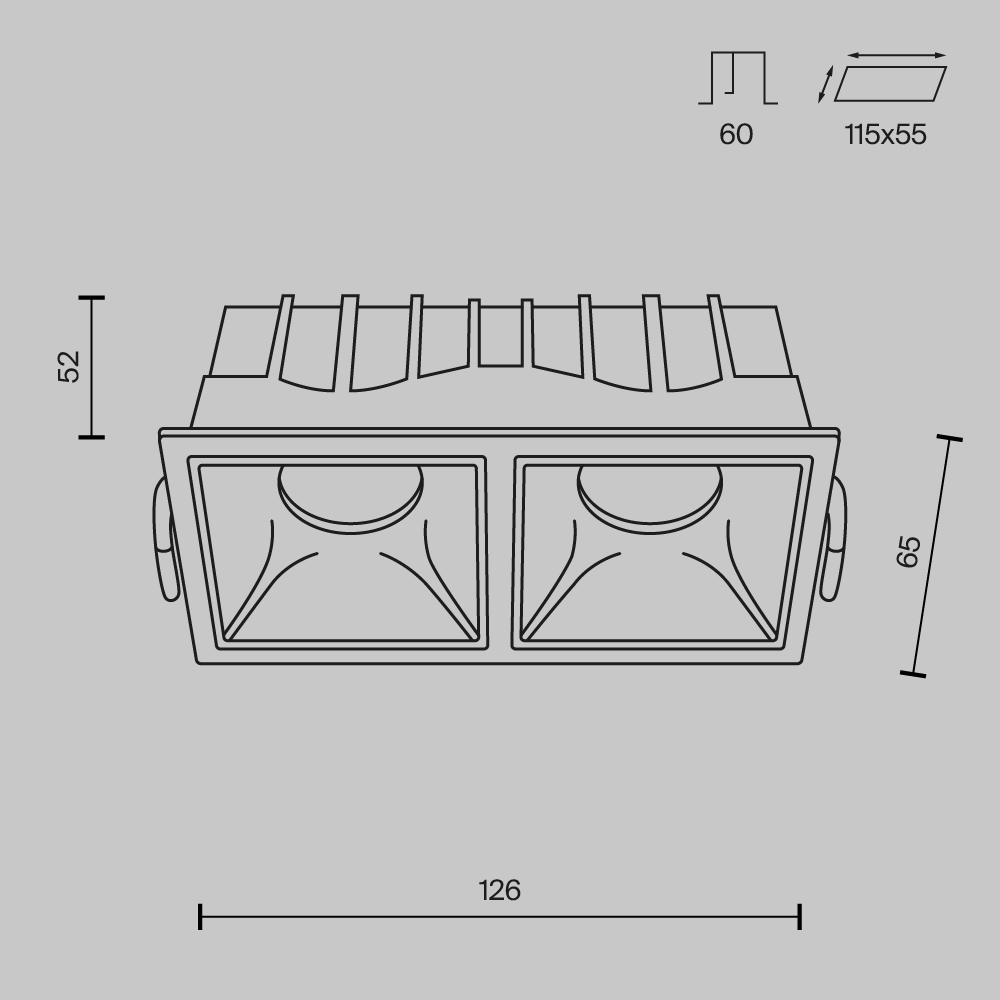

Drawing
All dimensions in mm
